Description
Brand - NEW WAY
Item Number - S3640R NEW WAY
Category - Spherical Air Bearings

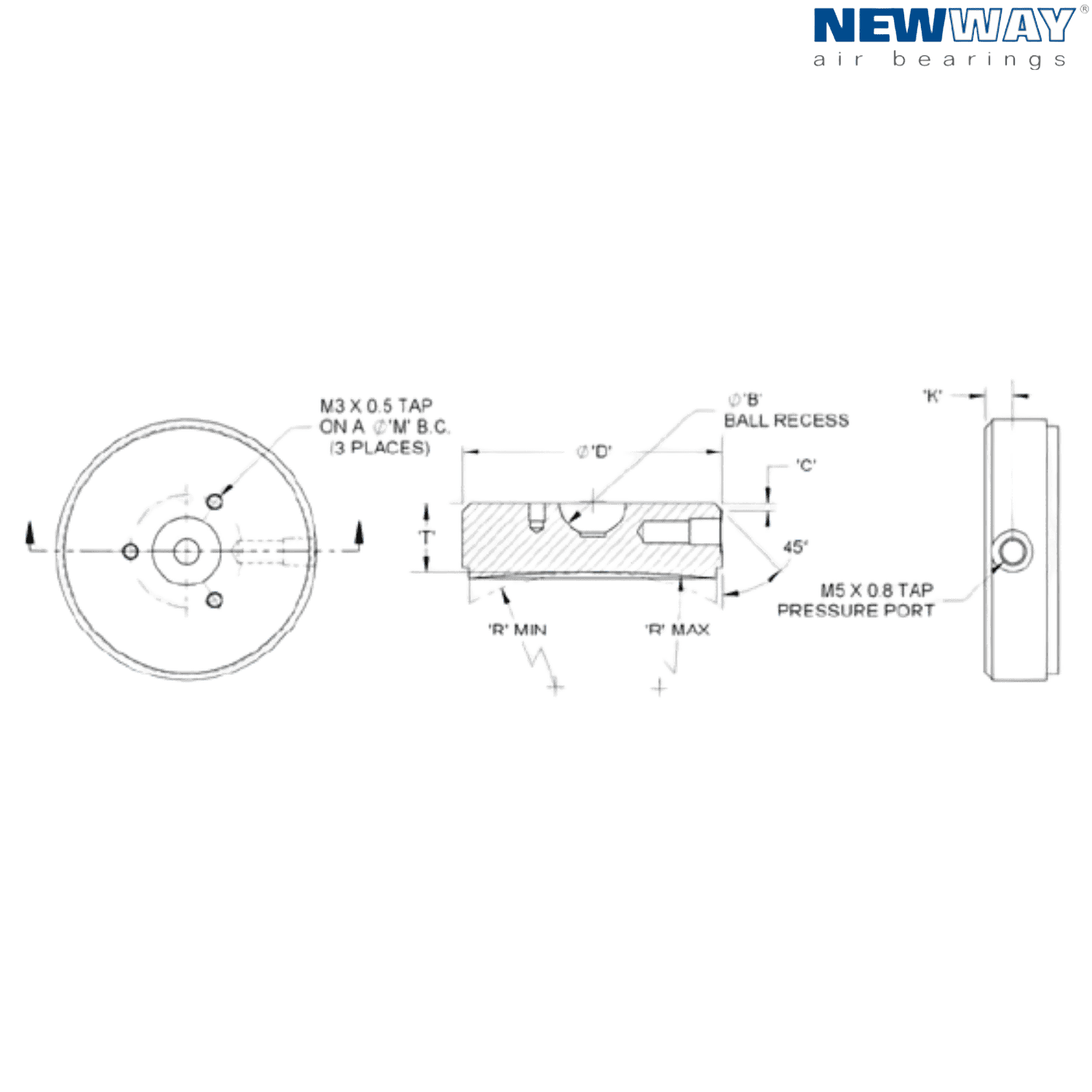

Imperial :
Diameter (inch) - 1.575
T (inch) - 0.512
Minimum R (inch) - 1.575
Maximum R (inch) - 7.874
B (inch) - 0.512
C (inch) - 0.059
K (inch) - 0.209
M (inch) - 0.85
N (inch) - 0.118
Load at 5μm fly height (lb) - 40.016
Stiffness (lb/μin) - 0.16
Flow (ft^3/min) - 0.063
Bearing Weight (lb) - 0.077
Metric :
Diameter (mm) - 40
T (mm) - 13
Minimum R (mm) - 40
Maximum R (mm) - 200
B (mm) - 13
C (mm) - 1.5
K (mm) - 5.3
M (mm) - 21.59
N (mm) - 3
Load at 5μm fly height (N) - 178
Stiffness (N/μm) - 28
Flow (SLPM) - 1.79
Bearing Weight (kg) - 0.035

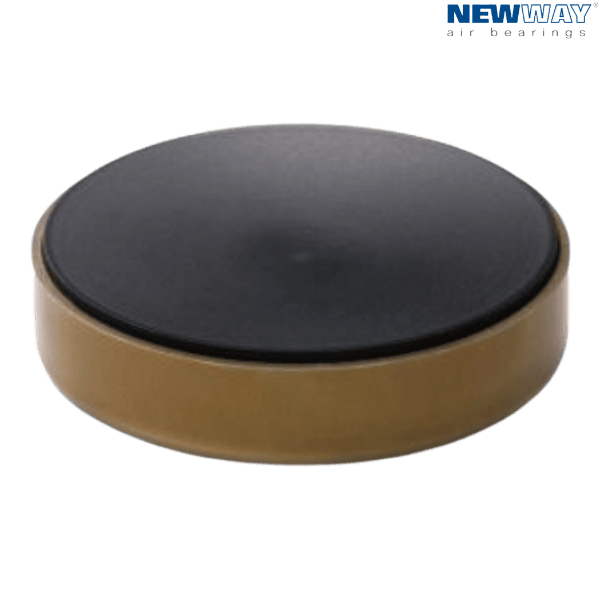

** Images are for representation purposes only
