S2BCH-503-HD FAG

Brand - FAG
Item Number - S2BCH-503-HD FAG

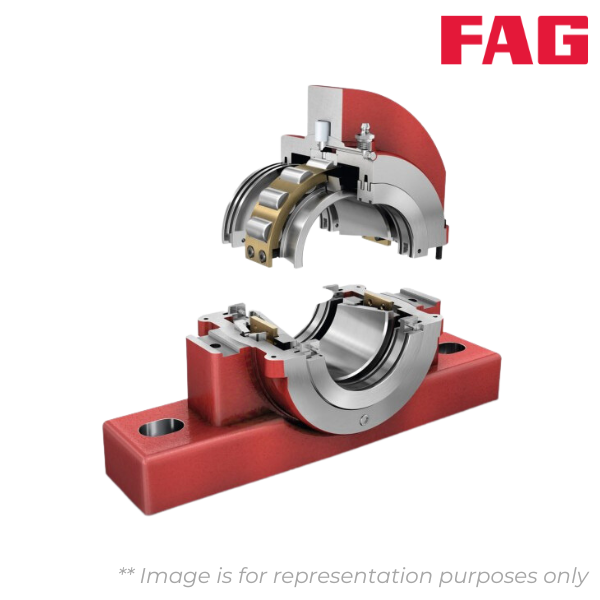

Category - Split Cylindrical Roller Bearing Housing
Complete Unit Float - S2BCH-503-FL
Complete Unit Held - S2BCH-503-HD
Shaft Diameter (d) inch - 5.1875
Weight of Complete Unit (m) kg - 145.1040808
Housing Designation - PH-20
Length base (B) inch - 24
Housing Height (H) inch - 18
Center Height (A) inch - 8

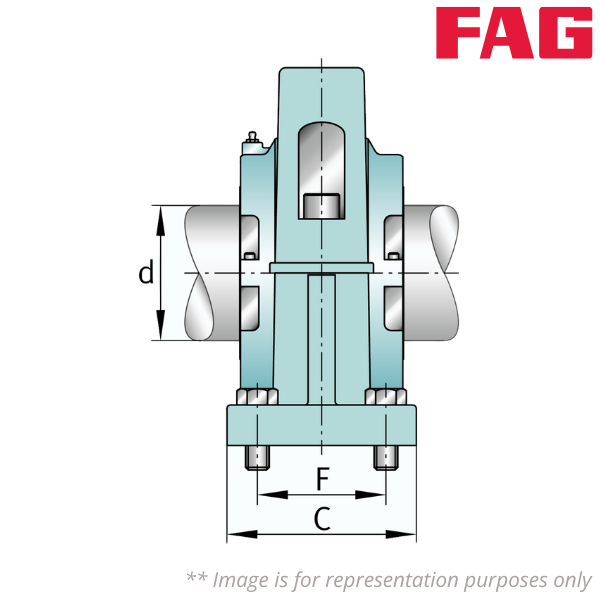

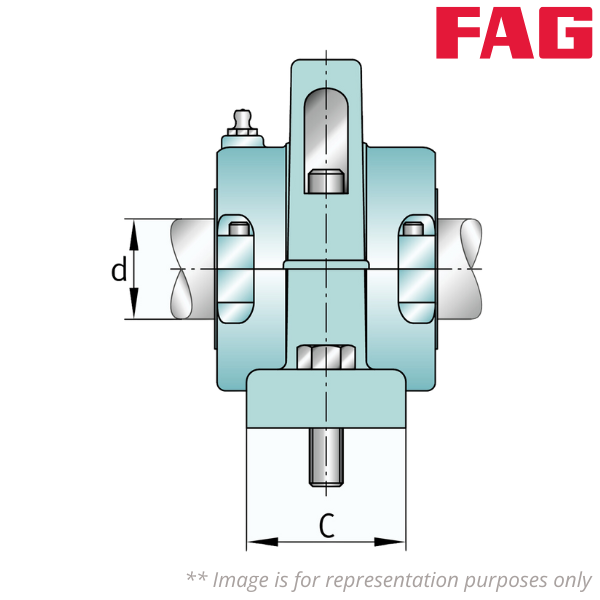

Base Width (C) inch - 7
Base Height (D) inch - 2
Minimum Base Hole Distance 1 (E min) inch - 21
Maximum Base Hole Distance 1 (E max) inch - 22
Base Hole Distance 2 (F) inch - 4.75
Number of Mounting Bolts (S) - 4
Mounting Bolt Diameter (S) inch - 1
Cartridge Assembly Float Bearing - S2BC-503-FL
Cartridge Assembly Held Bearing - S2BC-503-HD
Cartridge - S2C-508
Bearing Float - S2B-503-FL
Bearing Held - S2B-503-HD
Housing Group - 508 Grp

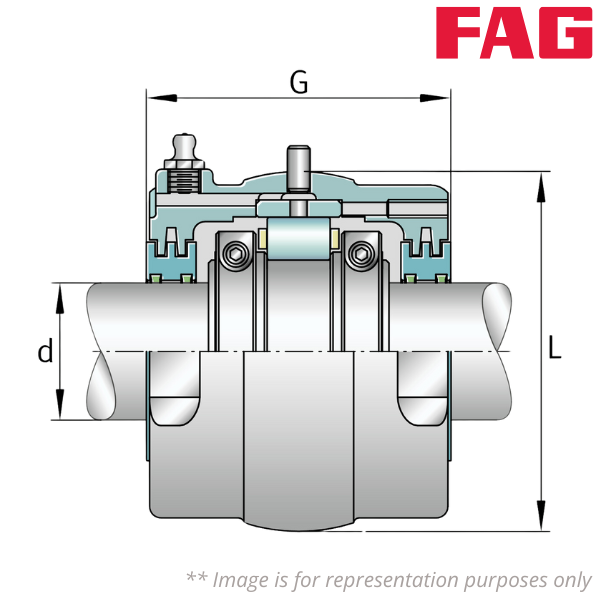

Length Through Bore (G) inch - 7.375
Outside Diameter Cartridge (L) inch - 12.75
Grease Capacity (lbs) - 3
Cartridge Weight (kg) - 62.7317736
Basic Dynamic Radial Load Rating (Cr) lbs - 133700
Basic Static Radial Load Rating (C0r) lbs - 197779
Basic Dynamic Axial Load Rating (Ca) lbs - 1060
Maximum Limiting Speed (rpm) - 1630

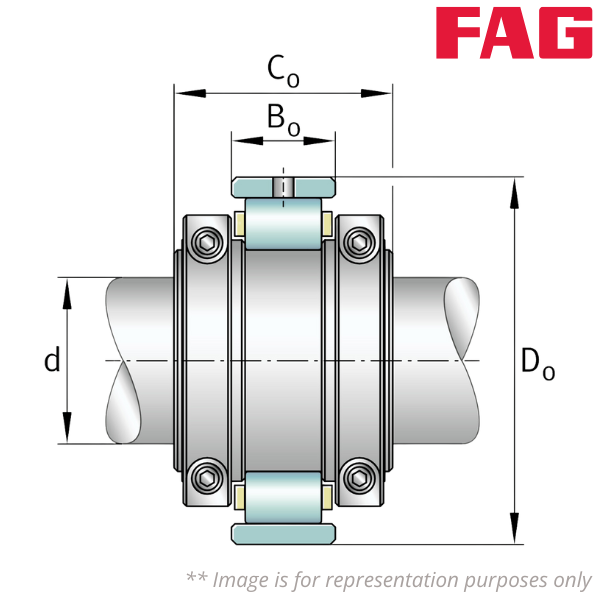

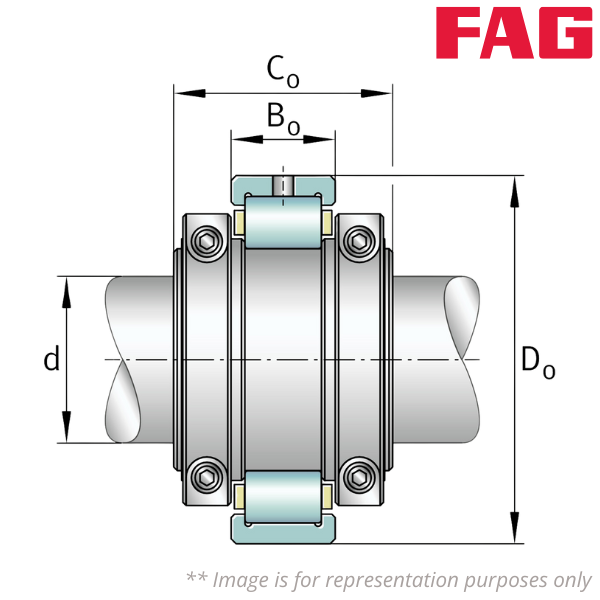

Outside Diameter Bearing (Do) inch - 10.75
Width Inner Ring (Co) inch - 4.625
Width Outer Ring (Bo) inch - 2.625
Bearing Weight (kg) - 26.4444136
