Description
Brand - FAG
Item Number - S2B-908-HD FAG

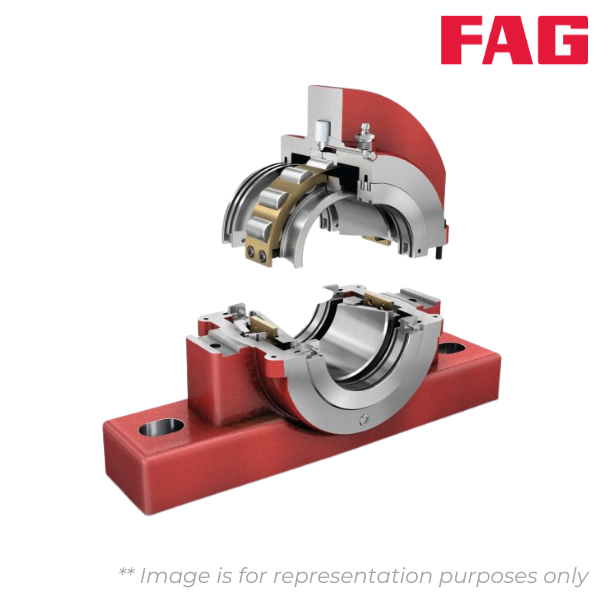

Category - Split Cylindrical Roller Bearing Housing

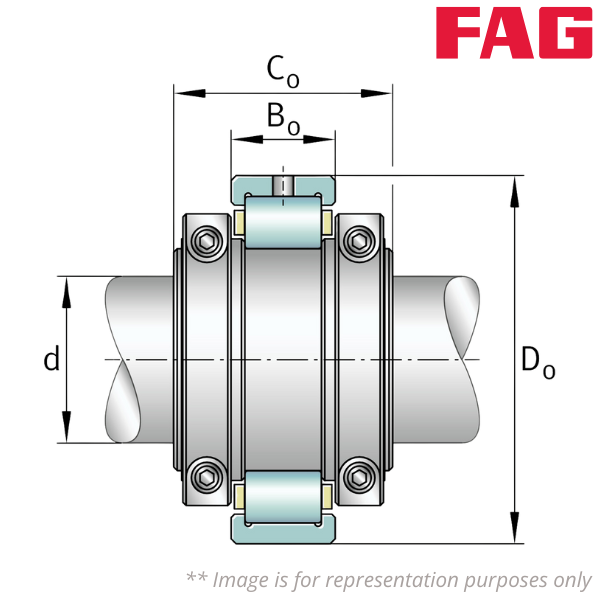

Shaft Diameter (d) inch - 9.5
Weight (kg) - 84.7763448
Bearing Float - S2B-908-FL
Bearing Held - S2B-908-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 246011
Basic Static Radial Load Rating (C0r) lbs - 427712
Basic Dynamic Axial Load Rating (Ca) lbs - 13763
Maximum Limiting Speed (rpm) - 990
Outside Diameter Bearing (Do) inch - 17
Width Inner Ring (Co) inch - 6.668
Width Outer Ring (Bo) inch - 3.813
Housing Group - 1000 Grp
