Description
Brand - FAG
Item Number - S2B-700-FL FAG

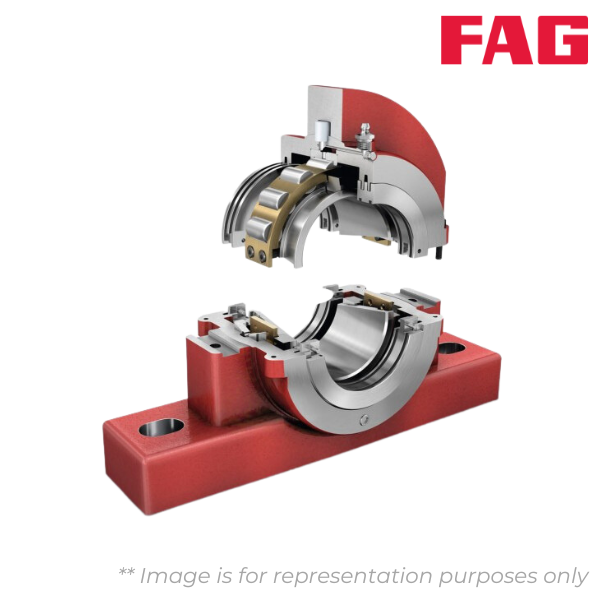

Category - Split Cylindrical Roller Bearing Housing

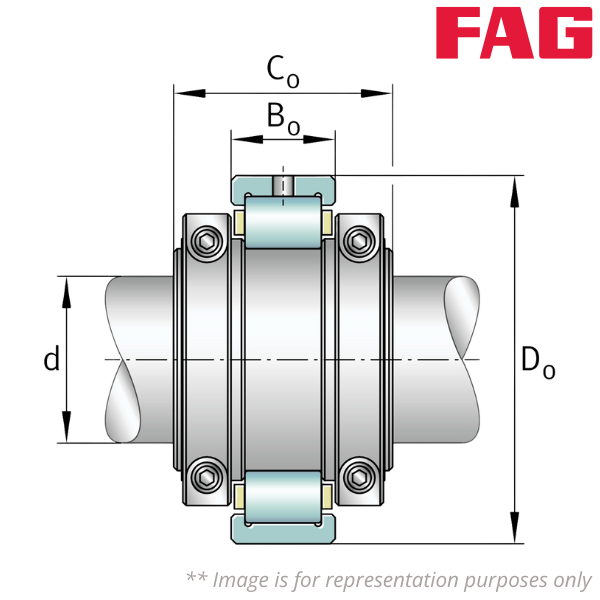

Shaft Diameter (d) inch - 7
Weight (kg) - 49.89512
Bearing Float - S2B-700-FL
Bearing Held - S2B-700-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 165129
Basic Static Radial Load Rating (C0r) lbs - 259839
Basic Dynamic Axial Load Rating (Ca) lbs - 11925
Maximum Limiting Speed (rpm) - 1336
Outside Diameter Bearing (Do) inch - 13
Width Inner Ring (Co) inch - 5.5
Width Outer Ring (Bo) inch - 3.281
Housing Group - 700 Grp
