S253201 NEW WAY

NEW WAY

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - NEW WAY
Item Number - S253201 NEW WAY
Category - Imperial Thrust Bushings
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Resolution - Infinite
Common Shaft Materials - Anodized aluminum, stainless steel, nickel plated steel, ceramics, glass

Imperial :
Size (inch) - 1.25
Input Pressure (psi) - 60
Maximum Radial Load (lbs) - 65
Maximum Thrust Load (lbs) - 145
Axial Stiffness (lbs/μ in) - 0.5
Radial Stiffness (lb/μin) - 0.19
Flowrate on Shaft (SCFH) - 13.0 - 21.0
Air Gap (micro-inches) - 150
Thrust Bushing (inch) - 1.2508 (+.0002 / -.0000)
Bushing Outside (inch) - 1.97
Thrust Face (inch) - 3
Thrust Bushing Length (inch) - 2.625
Thrust Bushing Weight (lb) - 0.525
Recommended Shaft (inch) - 1.250 (+.0000 / -.0003)
Recommended Mounting Bore (inch) - 1.990 (+ / -.002)
Maximum Allowable Pressure Supply (psi) - 100
Maximum Speed (ft/s) - 164

Metric :
Input Pressure (MPa) - 0.41
Maximum Radial Load (N) - 289
Maximum Thrust Load (N) - 645
Axial Stiffness (N/μm) - 87
Radial Stiffness (N/μm) - 34
Flowrate on Shaft (NLPM) - 5.62 - 9.08
Air Gap (microns) - 3.81
Thrust Bushing (mm) - 31.770 (+ 0.005 / -0.000)
Bushing Outside (mm) - 50
Thrust Face (mm) - 76.2
Thrust Bushing Length (mm) - 66.675
Thrust Bushing Weight (kg) - 238
Recommended Shaft (mm) - 31.750 (+0.000 / -0.005)
Recommended Mounting Bore (mm) - 50.55 (+0.076 / -0.000)
Maximum Allowable Pressure Supply (MPa) - 0.689
Maximum Speed (m/sec) - 50

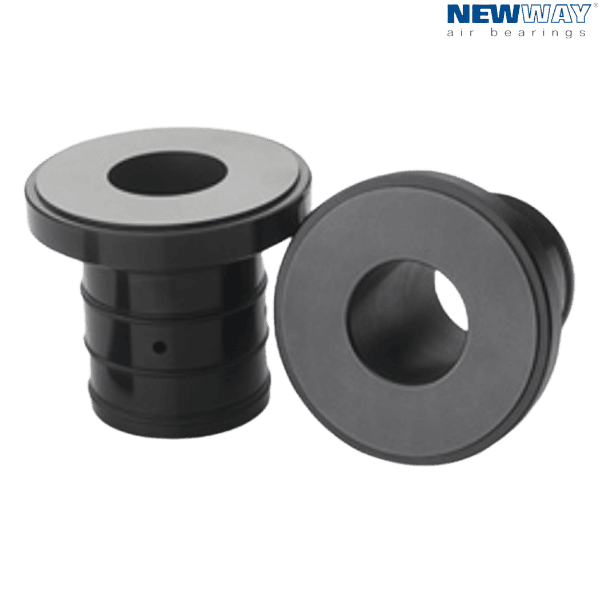

** Image is for representation purposes only
