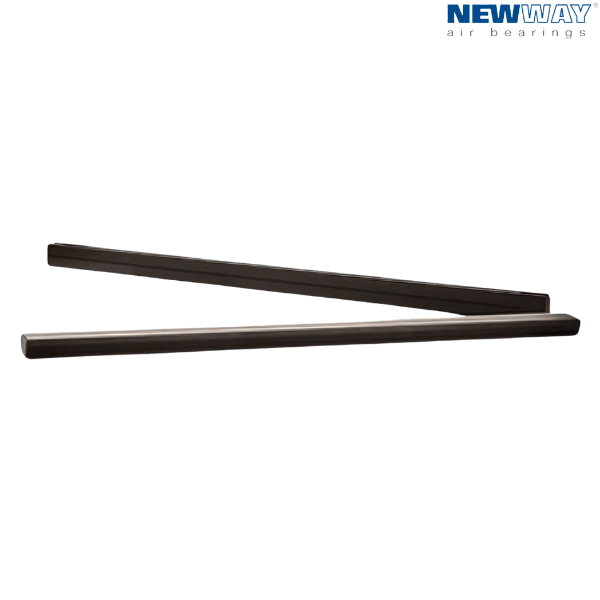

S2280T750 NEW WAY

Brand - NEW WAY
Item Number - S2280T750 NEW WAY
Category - Transition Zone Air Bar (T-Series)
Size (mm) - 750
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Air Supply - Bottom-Mounted Manifold
Vacuum Supply - Bottom Mounted

Imperial :
Fly Height Example (inch) - 0.0032
Input Pressure (psi) - 21
Input Pressure Flow (SCFH) - 64.8
Input Vacuum (in H2O) - 2
Input Vacuum Flow (SCFH) - 43.8
Substrate Fly Height Range (inch) - 0.0008 - 0.0047
Fly Height Control (μ inch) - 197
Air Film Stiffness (lbs/μ inch) - 0.21
Stability (μ inch) - 0.2 μ in
Transition Zone Air Bar Length (inch) - 49.45
Transition Zone Air Bar Width (inch) - 3.94
Transition Zone Air Bar Height (inch) - 1.69
Transition Zone Air Bar Weight (lbs) - 11.9
Bearing Face Surface Size - Carbon (inch) - 3.94 x 49.21
Bearing Face Surface Flatness (inch) - 0.001
Viable Pressure Range (psi) - 0.5 - 40.0
Maximum Allowable Pressure Supply (psi) - 40
Substrate Size - up through Gen 10 and beyond
Substrate Thickness (inch) - 0.0118 and up
Maximum Substrate Speed (ft/sec) - 8.2

Metric :
Fly Height Example (microns) - 80
Input Pressure (kPa) - 145
Input Pressure Flow (NLPM) - 28.02
Input Vacuum (mmH20) - 50.8
Input Vacuum Flow (NLPM) - 18.94
Substrate Fly Height Range (microns) - 20 - 120
Fly Height Control (microns) - ±5
Air Film Stiffness (N/micron) - 0.04
Stability (nanometers) - ±5
Transition Zone Air Bar Length (mm) - 1256
Transition Zone Air Bar Width (mm) - 100
Transition Zone Air Bar Height (mm) - 42.85
Transition Zone Air Bar Weight (kg) - 5.39
Bearing Face Surface Size - Carbon (mm) - 100 x 1250
Bearing Face Surface Flatness (mm) - 0.025
Viable Pressure Range (kPa) - 3.48 - 275.79
Maximum Allowable Pressure Supply (kPa) - 275.79
Substrate Thickness (mm) - 0.3 and up
Maximum Substrate Speed (m/sec) - 2.5

Notes :
Proprietary Item :
------------------------------
The drawing is proprietary to New Way Machine Components, Inc. Unauthorized use, reproduction, or disclosure is prohibited without written consent. All rights reserved.

** Images are for representation purposes only
