Description
Brand - ZEN
Item Number - S2204 ZEN

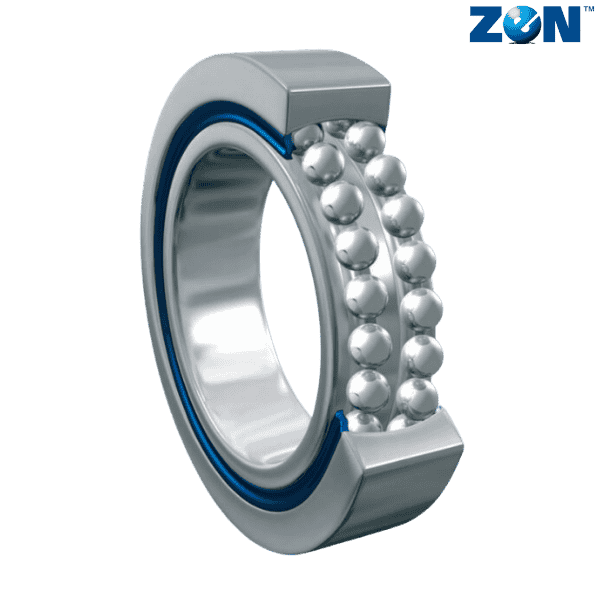

Category - Double Row Self Aligning Ball Bearing

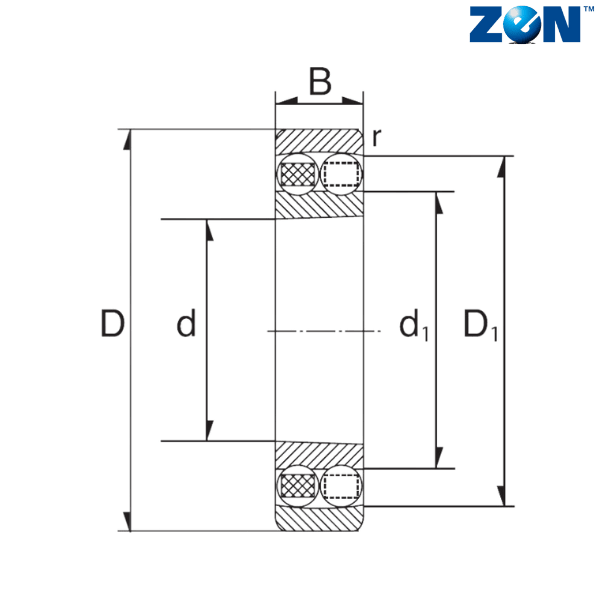

Inner Ring Dimension (d) mm - 20
Outer Ring Dimension (D) mm - 47
Width (B) mm - 18
Dynamic Load Rating (N) - 6860
Static Load Rating (N) - 2765
Limiting Speed (Grease) - 13
Limiting Speed (Oil) - 16
Weight (kg) - 0.14
Radial Play - 0.005-0.02
Outer Ring Material - AISI440
Inner Ring Material - AISI440
Ball Material - AISI440
Notes :
S - Stainless Steel
** Images are for representation purposes only
