S207501 NEW WAY

NEW WAY

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - NEW WAY
Item Number - S207501 NEW WAY
Category - Vacuum Preloaded Air Bearings
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Resolution - Infinite
Common Guide Surfaces - Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish - 16 RMS
Mounting - Flexure

Imperial :
Input Pressure (psi) - 60
Input Vacuum (inch Hg) - 15
Ideal Load (lbs) - 25
Stiffness (lbs/μin) - 0.17
Maximum Hold-Down Force at 50.7kPa (lb) - 40.5
Flow (SCFH) - 2.92
Fly Height (µin) - 197
Bearing Size (inch) - 3
Bearing Height (inch) - 0.866
Bearing Weight (lb) - 0.45
Bearing Face Surface Size - Carbon (inch) - 2.0 ID x 2.9 OD
Flatness (inch) - 0.00004
Viable Pressure Range (psi) - 60 - 80
Maximum Allowable Pressure Supply (psi) - 100
Maximum Speed (ft/s) - 164

Metric :
Input Pressure (MPa) - 0.41
Ideal Load (N) - 110
Stiffness (N/micron) - 29
Maximum Hold-Down Force at 50.7kPa (N) - 180
Flow (NLPM) - 1.26
Fly Height (microns) - 5
Bearing Size (mm) - 75
Bearing Height (mm) - 22
Bearing Weight (kg) - 203
Bearing Face Surface Size - Carbon (mm) - 51.9 ID x 73.1 OD
Flatness (mm) - 0.001
Pressure Port - M5
Vacuum Port - M5
Viable Pressure Range (MPa) - 0.414 - 0.552
Maximum Allowable Pressure Supply (MPa) - 0.689
Maximum Speed (m/sec) - 50

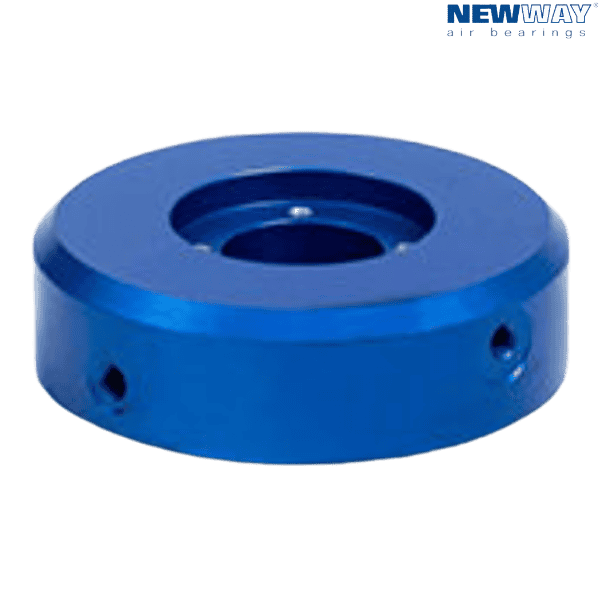

** Image is for representation purposes only
