S1SNLH-500-FL FAG


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item Number - S1SNLH-500-FL FAG
Category - SN Compatible Blocks
Complete Unit Float - S1SNLH-500-FL
Complete Unit Held - S1SNLH-500-HD
Shaft Diameter (d) inch - 5
Weight (m) kg - 79.832192
Pedestal Housing - SNLH-8

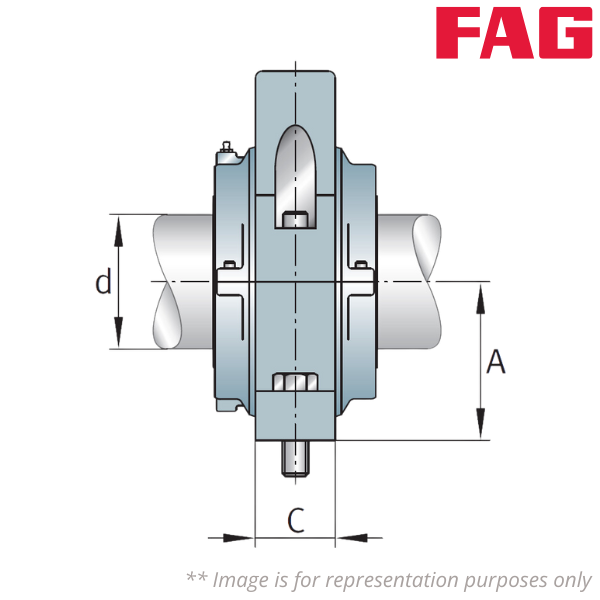

Center Height (A) inch - 5.90625
Length Base (B) inch - 19.6875
Base Width (C) inch - 3
Base Height (D) inch - 1.625
Dimension (E) inch - 16.5625
Housing Height (H) inch - 13.5
Number of Mounting Bolts (S) - 2
Mounting Bolt Diameter (S) inch - 1.25
