S1BCH-503-HD FAG

Brand - FAG
Item Number - S1BCH-503-HD FAG

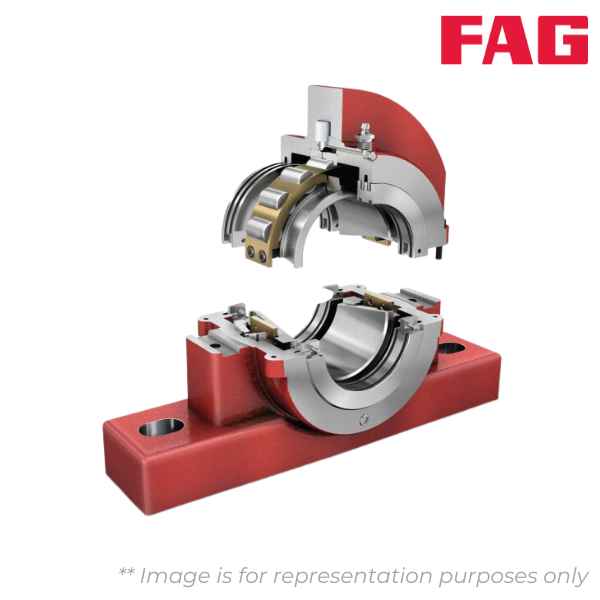

Category - Split Cylindrical Roller Bearing Housing
Complete Unit Float - S1BCH-503-FL
Complete Unit Held - S1BCH-503-HD
Shaft Diameter (d) inch - 5.1875
Weight of Complete Unit (m) kg - 91.3080696
Housing Designation - PH-9
Length base (B) inch - 22
Housing Height (H) inch - 15.5
Center Height (A) inch - 7.125

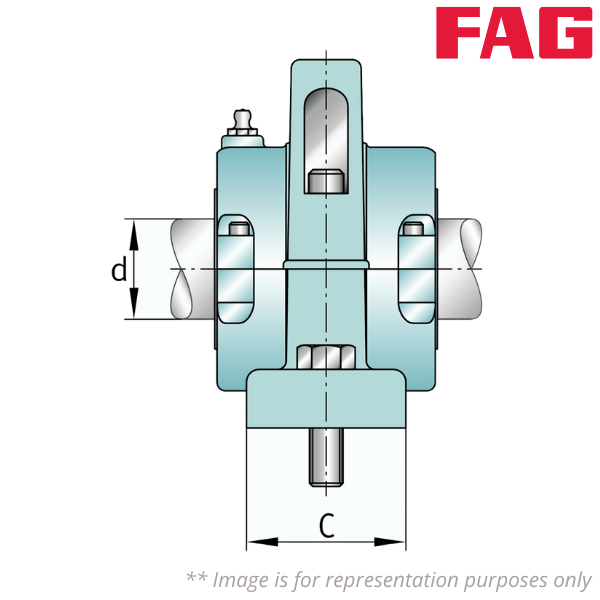

Base Width (C) inch - 7
Base Height (D) inch - 1.5625
Minimum Base Hole Distance 1 (E min) inch - 18.5
Maximum Base Hole Distance 1 (E max) inch - 19.5

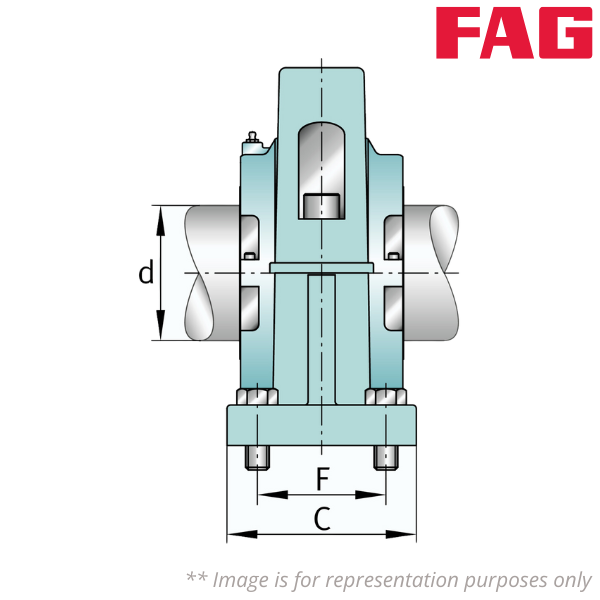

Base Hole Distance 2 (F) inch - 4.75
Number of Mounting Bolts (S) - 4
Mounting Bolt Diameter (S) inch - 0.875
Cartridge Assembly Float Bearing - S1BC-503-FL
Cartridge Assembly Held Bearing - S1BC-503-HD
Cartridge - S1C-508
Bearing Float - S1B-503-FL
Bearing Held - S1B-503-HD
Housing Group - 508 Grp

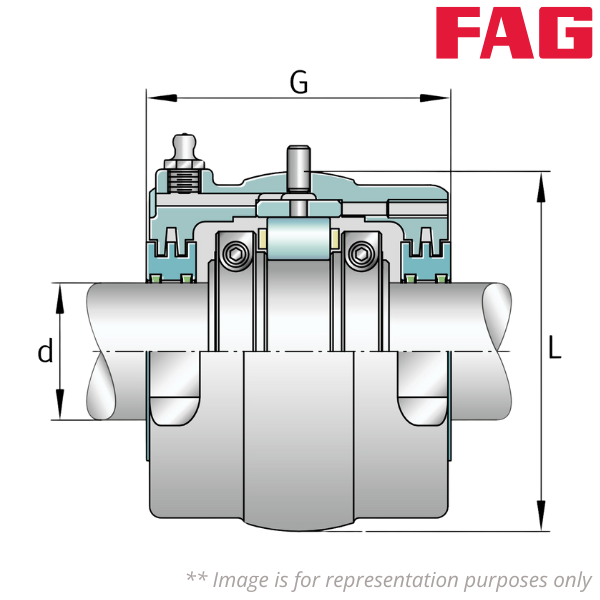

Length Through Bore (G) inch - 6.5625
Outside Diameter Cartridge (L) inch - 11
Grease Capacity (lbs) - 1.8
Cartridge Weight (kg) - 36.7863112
Basic Dynamic Radial Load Rating (Cr) lbs - 80739
Basic Static Radial Load Rating (C0r) lbs - 124862
Basic Dynamic Axial Load Rating (Ca) lbs - 717
Maximum Limiting Speed (rpm) - 1780

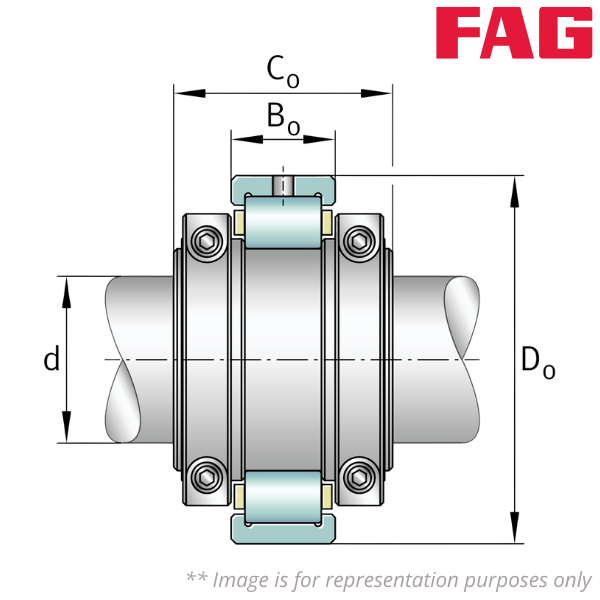

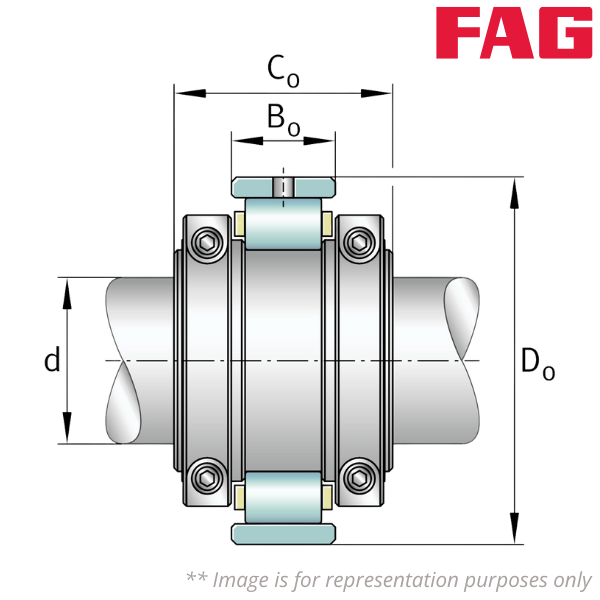

Outside Diameter Bearing (Do) inch - 9.5
Width Inner Ring (Co) inch - 3.875
Width Outer Ring (Bo) inch - 2.188
Bearing Weight (kg) - 14.6963808
