S1BCH-1000-HD FAG

Brand - FAG
Item Number - S1BCH-1000-HD FAG

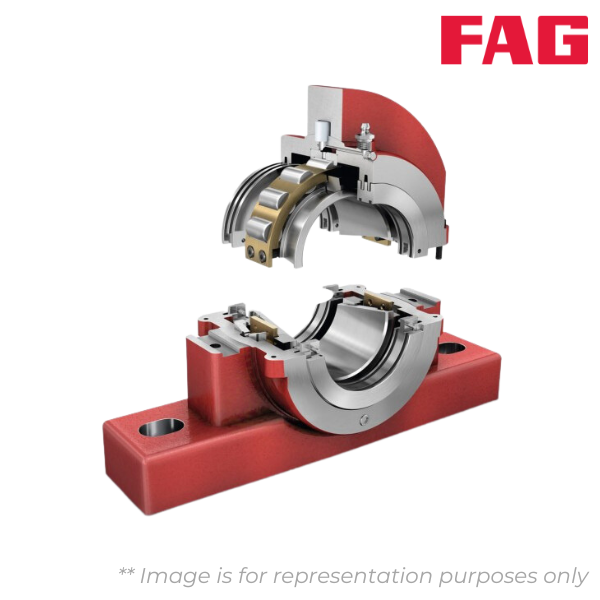

Category - Split Cylindrical Roller Bearing Housing
Complete Unit Float - S1BCH-1000-FL
Complete Unit Held - S1BCH-1000-HD
Shaft Diameter (d) inch - 10
Weight of Complete Unit (m) kg - 232.1937448
Housing Designation - PH-15
Length base (B) inch - 27
Housing Height (H) inch - 23
Center Height (A) inch - 11.5

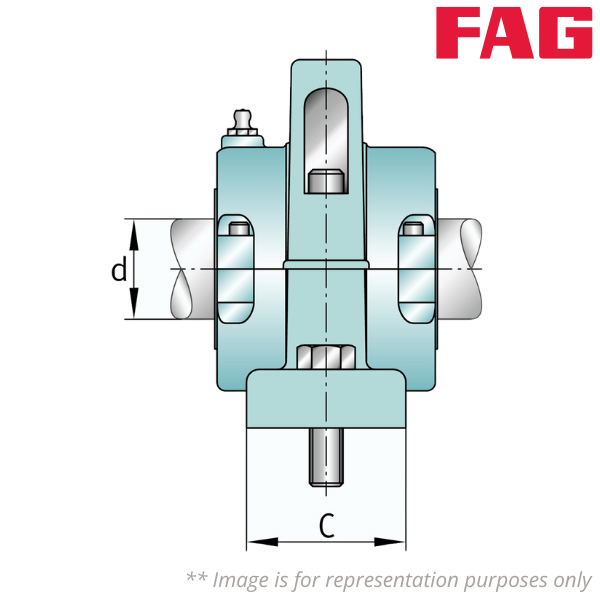

Base Width (C) inch - 9
Base Height (D) inch - 1.75
Minimum Base Hole Distance 1 (E min) inch - 19
Maximum Base Hole Distance 1 (E max) inch - 20.5

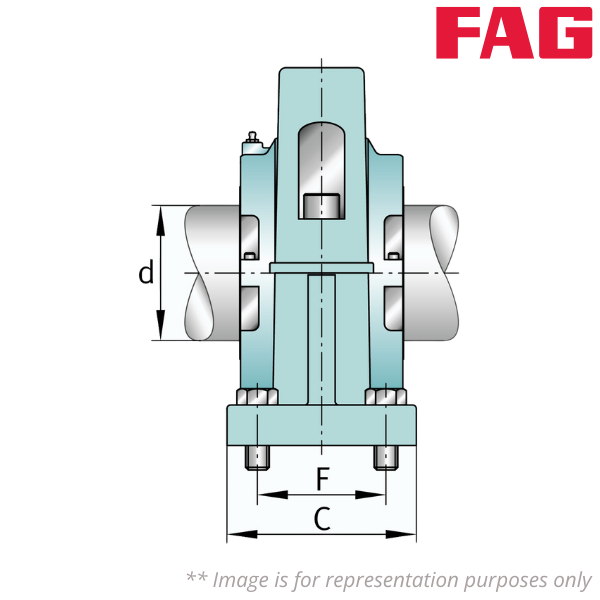

Base Hole Distance 2 (F) inch - 5.5
Number of Mounting Bolts (S) - 4
Mounting Bolt Diameter (S) inch - 1.25
Cartridge Assembly Float Bearing - S1BC-1000-FL
Cartridge Assembly Held Bearing - S1BC-1000-HD
Cartridge - S1C-1000
Bearing Float - S1B-1000-FL
Bearing Held - S1B-1000-HD
Housing Group - 1000 Grp

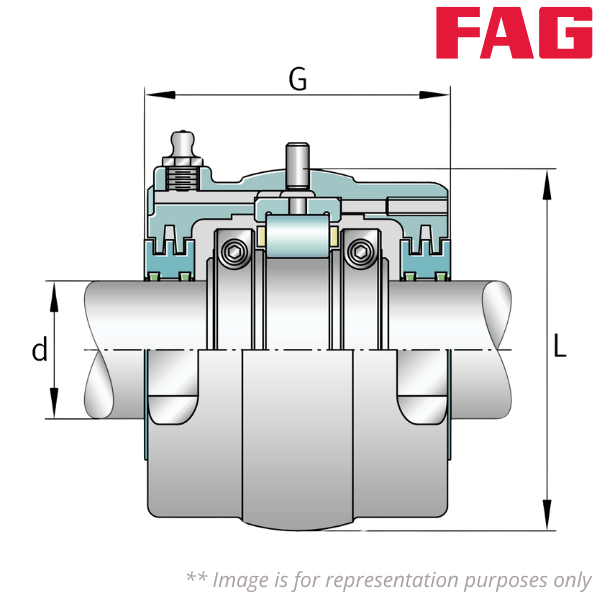

Length Through Bore (G) inch - 8.75
Outside Diameter Cartridge (L) inch - 16.5
Grease Capacity (lbs) - 4.2
Cartridge Weight (kg) - 102.9200248
Basic Dynamic Radial Load Rating (Cr) lbs - 136115
Basic Static Radial Load Rating (C0r) lbs - 266420
Basic Dynamic Axial Load Rating (Ca) lbs - 9284
Maximum Limiting Speed (rpm) - 1080

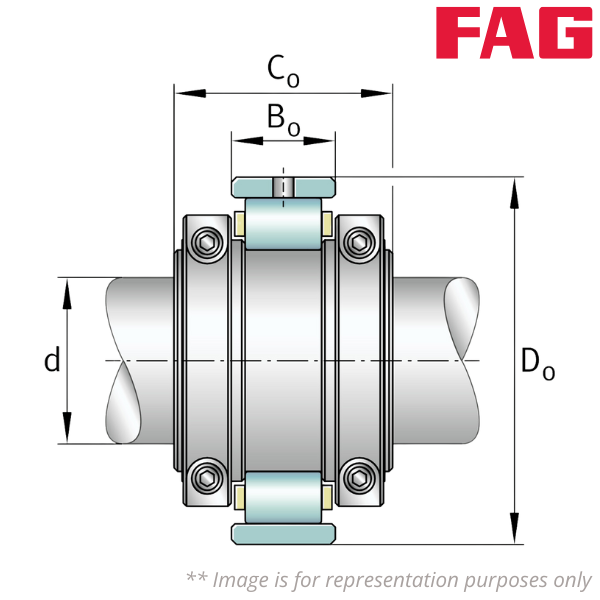

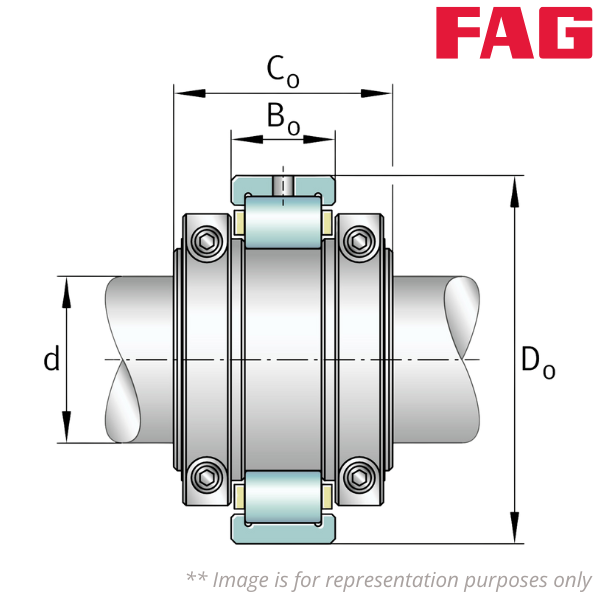

Outside Diameter Bearing (Do) inch - 14.75
Width Inner Ring (Co) inch - 4.803
Width Outer Ring (Bo) inch - 2.625
Bearing Weight (kg) - 37.194544
