Description
Brand - FAG
Item Number - S1BC-70MM-HD FAG

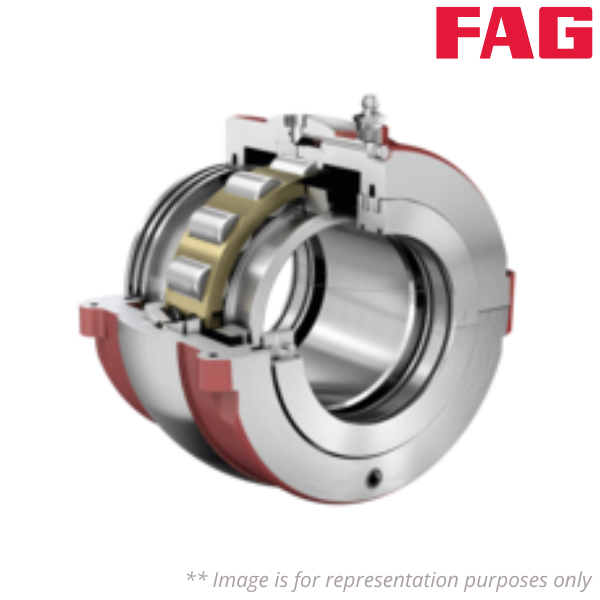

Category - Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) mm - 70
Cartridge Assembly Float Bearing - S1BC-70MM-FL
Cartridge Assembly Held Bearing - S1BC-70MM-HD
Length Through Bore (G) inch - 4.375
Outside Diameter Cartridge (L) inch - 6.1875
Grease Capacity (lbs) - 0.39
Cartridge - S1C-300
Weight (kg) - 8.391452
Bearing Float - S1B-70MM-FL
Bearing Held - S1B-70MM-HD
Bearing Weight (kg) - 2.721552
Basic Dynamic Radial Load Rating (Cr) lbs - 29856
Basic Static Radial Load Rating (C0r) lbs - 40095
Basic Dynamic Axial Load Rating (Ca) lbs - 433
Maximum Limiting Speed (rpm) - 3190
Outside Diameter Bearing (Do) inch - 5.25
Width Inner Ring (Co) inch - 2.41
Width Outer Ring (Bo) inch - 1.25
Housing Group - 300 Grp
