Description
Brand - FAG
Item Number - S1BC-504-FL FAG

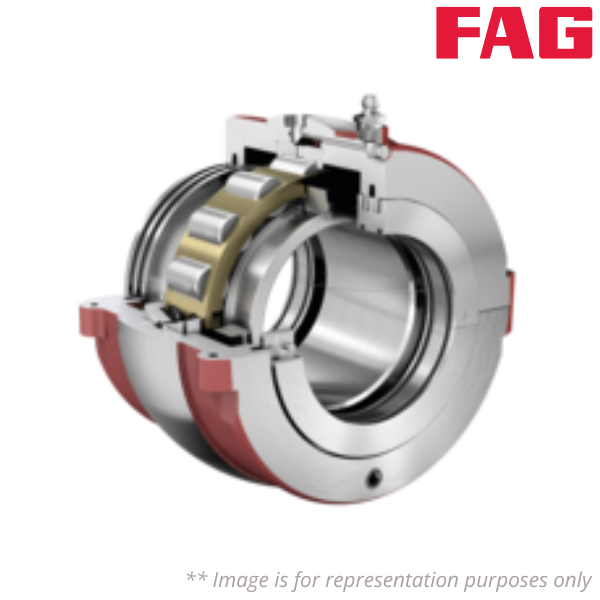

Category - Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) inch - 5.25
Cartridge Assembly Float Bearing - S1BC-504-FL
Cartridge Assembly Held Bearing - S1BC-504-HD
Length Through Bore (G) inch - 6.5625
Outside Diameter Cartridge (L) inch - 11
Grease Capacity (lbs) - 1.8
Cartridge - S1C-508
Weight (kg) - 36.7863112
Bearing Float - S1B-504-FL
Bearing Held - S1B-504-HD
Bearing Weight (kg) - 14.6963808
Basic Dynamic Radial Load Rating (Cr) lbs - 80739
Basic Static Radial Load Rating (C0r) lbs - 124862
Basic Dynamic Axial Load Rating (Ca) lbs - 717
Maximum Limiting Speed (rpm) - 1780
Outside Diameter Bearing (Do) inch - 9.5
Width Inner Ring (Co) inch - 3.875
Width Outer Ring (Bo) inch - 2.188
Housing Group - 508 Grp
