Description
Brand - FAG
Item Number - S1BC-1500-HD FAG

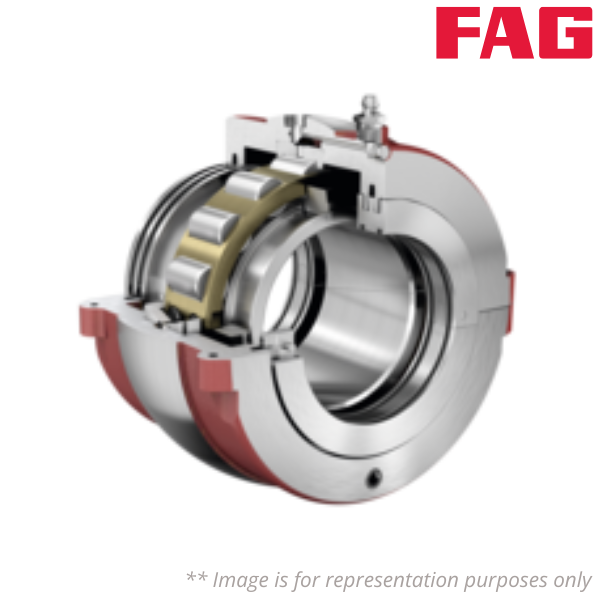

Category - Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) inch - 15
Cartridge Assembly Float Bearing - S1BC-1500-FL
Cartridge Assembly Held Bearing - S1BC-1500-HD
Length Through Bore (G) inch - 11
Outside Diameter Cartridge (L) inch - 22.5
Grease Capacity (lbs) - 7
Cartridge - S1C-1500
Weight (kg) - 220.4003528
Bearing Float - S1B-1500-FL
Bearing Held - S1B-1500-HD
Bearing Weight (kg) - 68.492392
Basic Dynamic Radial Load Rating (Cr) lbs - 203593
Basic Static Radial Load Rating (C0r) lbs - 436961
Basic Dynamic Axial Load Rating (Ca) lbs - 10545
Maximum Limiting Speed (rpm) - 753
Outside Diameter Bearing (Do) inch - 20.5
Width Inner Ring (Co) inch - 5.509
Width Outer Ring (Bo) inch - 3
Housing Group - 1500 Grp
