Description
Brand - FAG
Item Number - S1BC-1000-HD FAG

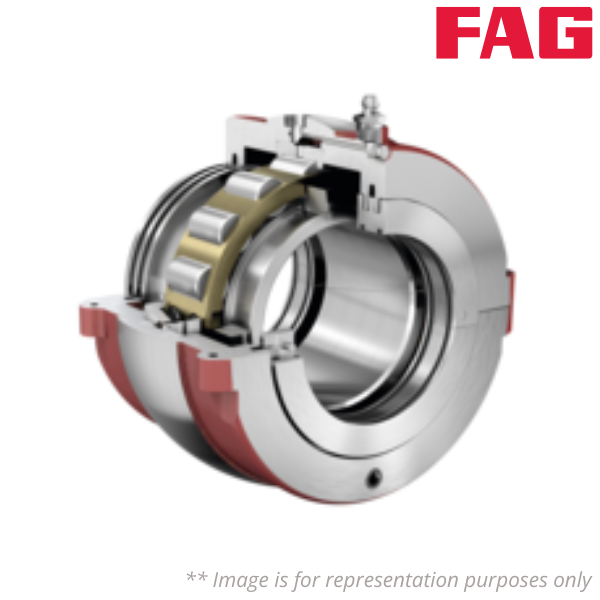

Category - Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) inch - 10
Cartridge Assembly Float Bearing - S1BC-1000-FL
Cartridge Assembly Held Bearing - S1BC-1000-HD
Length Through Bore (G) inch - 8.75
Outside Diameter Cartridge (L) inch - 16.5
Grease Capacity (lbs) - 4.2
Cartridge - S1C-1000
Weight (kg) - 102.9200248
Bearing Float - S1B-1000-FL
Bearing Held - S1B-1000-HD
Bearing Weight (kg) - 37.194544
Basic Dynamic Radial Load Rating (Cr) lbs - 136115
Basic Static Radial Load Rating (C0r) lbs - 266420
Basic Dynamic Axial Load Rating (Ca) lbs - 9284
Maximum Limiting Speed (rpm) - 1080
Outside Diameter Bearing (Do) inch - 14.75
Width Inner Ring (Co) inch - 4.803
Width Outer Ring (Bo) inch - 2.625
Housing Group - 1000 Grp
