Description
Brand - FAG
Item Number - S1B-212-FL FAG
Category - Split Cylindrical Roller Bearing Housing

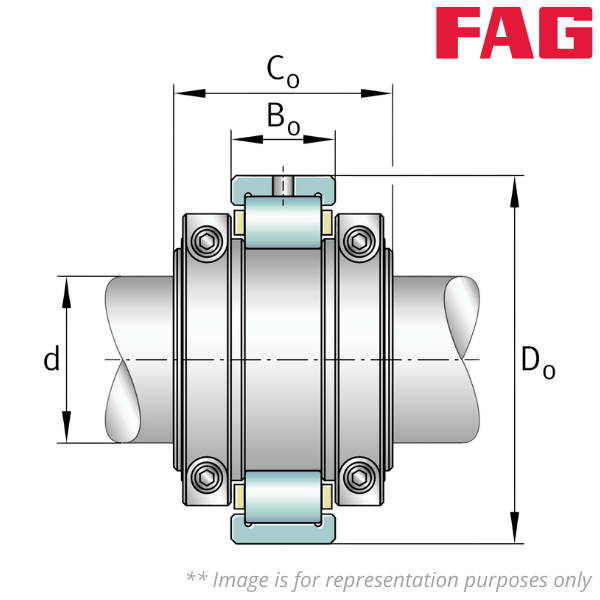

Shaft Diameter (d) inch - 2.75
Weight (kg) - 2.721552
Bearing Float - S1B-212-FL
Bearing Held - S1B-212-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 29856
Basic Static Radial Load Rating (C0r) lbs - 40095
Basic Dynamic Axial Load Rating (Ca) lbs - 433
Maximum Limiting Speed (rpm) - 3190
Outside Diameter Bearing (Do) inch - 5.25
Width Inner Ring (Co) inch - 2.41
Width Outer Ring (Bo) inch - 1.25
Housing Group - 300 Grp
