Description
Brand - NEW WAY
Item Number - S17072415 NEW WAY
Category - Bonded Bearing
Nominal Bearing Width (mm) - 12
Width (W) mm - 71.7
Length (L1) mm - 296.7
Height (T) mm - 15

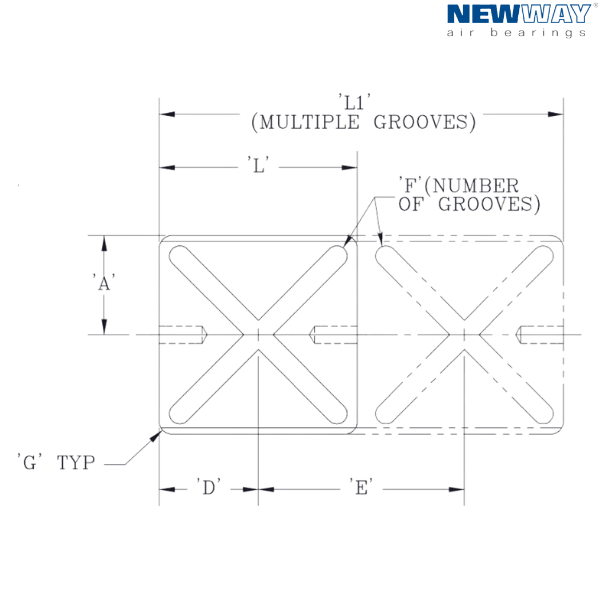

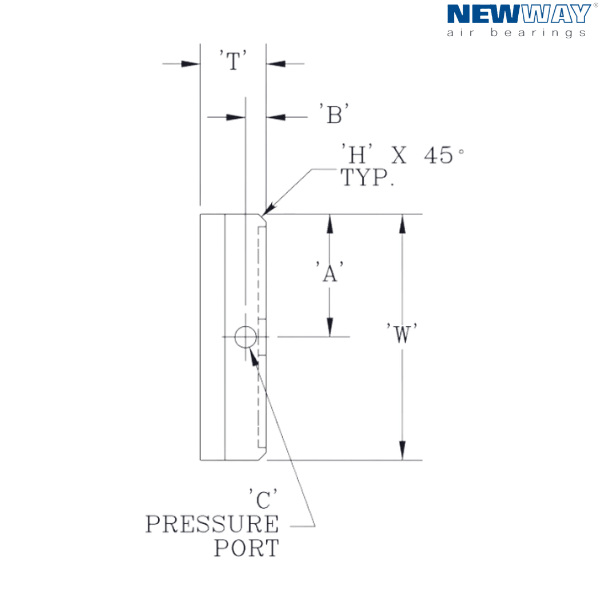

A (mm) - 35.85
B (mm) - 6.5
Pressure Port Thread (C) - M5 X 0.8
D (mm) - 35.85
E (mm) - 75
Number of Grooves (F) - 4
G (mm) - 3.175
H (mm) - 1.5
Ideal Load (N) - 5160
Flow (SLPM) - 3.3
Weight (kg) - 0.683
** Images are for representation purposes only
