Description
Brand - NEW WAY
Item Number - S17038210 NEW WAY
Category - Bonded Bearing

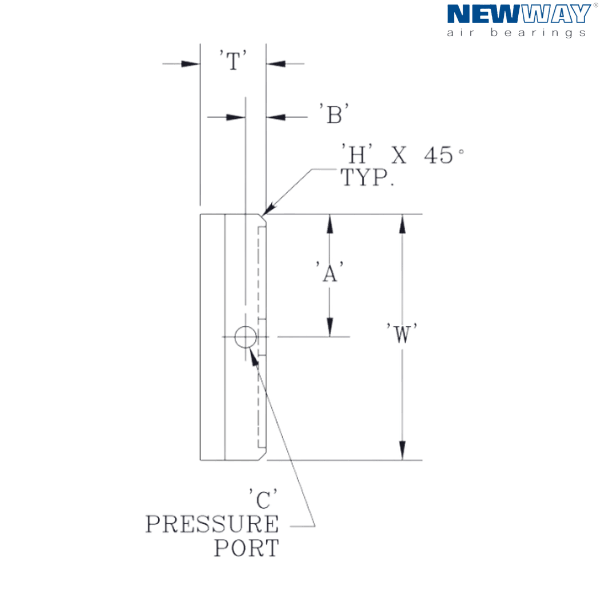

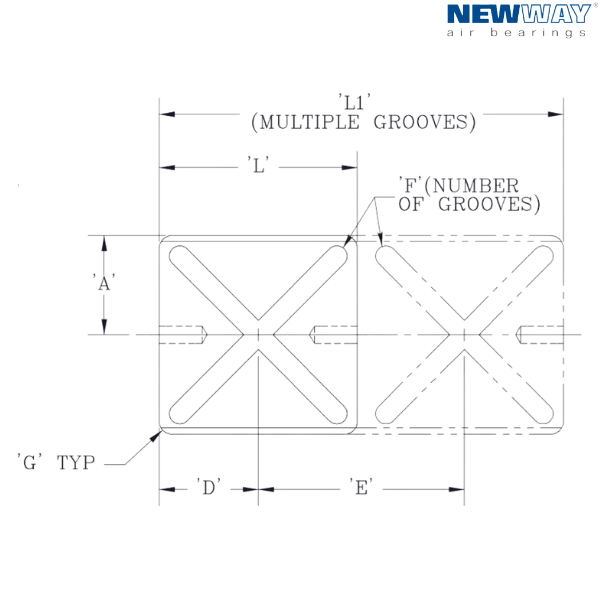

Nominal Bearing Width (mm) - 12
Width (W) mm - 38.1
Length (L1) mm - 78.1
Height (T) mm - 10
A (mm) - 19.05
B (mm) - 3.8
Pressure Port Thread (C) - M3 X 0.5
D (mm) - 19.05
E (mm) - 40
Number of Grooves (F) - 2
G (mm) - 3.175
H (mm) - 1.25
Ideal Load (N) - 623
Flow (SLPM) - 1.9
Weight (kg) - 0.0638

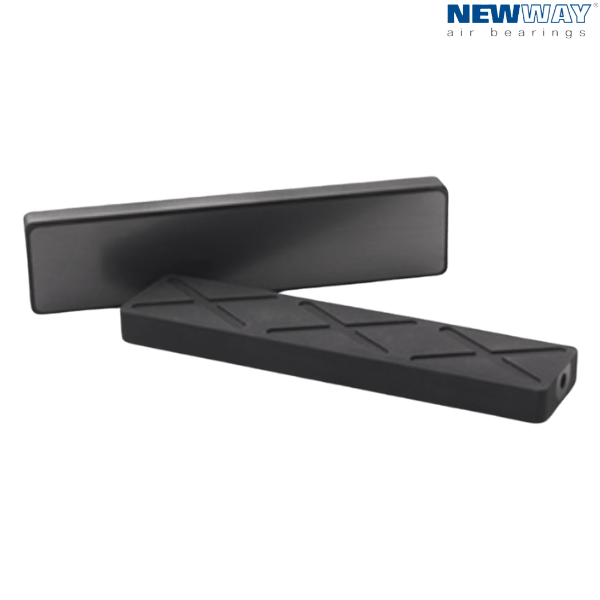

** Images are for representation purposes only
