Description
Brand - NEW WAY
Item Number - S17012110 NEW WAY
Category - Bonded Bearing
Nominal Bearing Width (mm) - 12
Width (W) mm - 12.0
Length (L) mm - 12
Height (T) mm - 10
A (mm) - 6.00
B (mm) - 3.8
Pressure Port Thread (C) - M3 X 0.5
D (mm) - 6.00
Number of Grooves (F) - 1
G (mm) - 2.5
H (mm) - 1.25
Ideal Load (N) - 18
Flow (SLPM) - 0.1
Weight (kg) - 0.0031

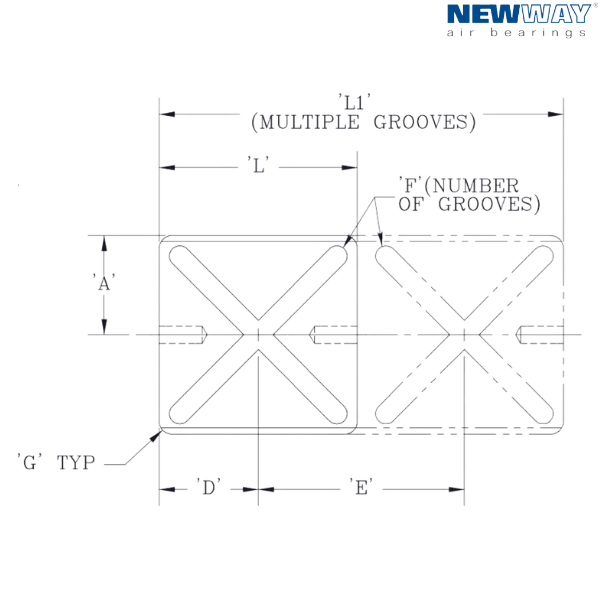

** Images are for representation purposes only
