Description
Brand - TIMKEN
Item Number - S-4055-C TIMKEN
Category - Tapered Roller Thrust Bearing (TTHDFL Type)
Cage Type - Machined

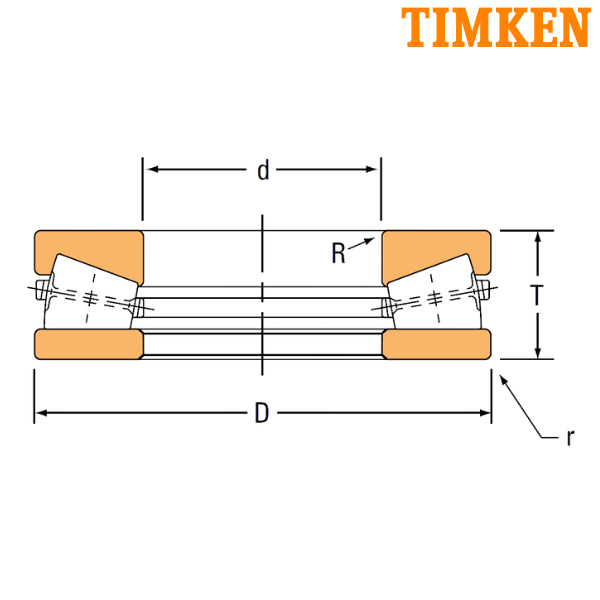

Bore Diameter (d) mm - 149.974
Bore Diameter (d) inch - 5.9045
Outer Diameter (D) mm - 299.720
Outer Diameter (D) inch - 11.8000
Width (T) mm - 89.700
Width (T) inch - 3.5315
Maximum Shaft Fillet Radius (R) mm - 3.0
Maximum Shaft Fillet Radius (R) inch - 0.12
Maximum Housing Fillet Radius (r) mm - 3.0
Maximum Housing Fillet Radius (r) inch - 0.12
Static Load Rating (C0) N - 3350000
Static Load Rating (C0) lbf - 754000
Dynamic Load Rating (Ca90) N - 480000
Dynamic Load Rating (Ca90) lbf - 108000
Weight (kg) - 36.00
Weight (lbs) - 79.00
TTHDFL - Heavy Duty and Flat Race Tapered Roller Thrust Bearing

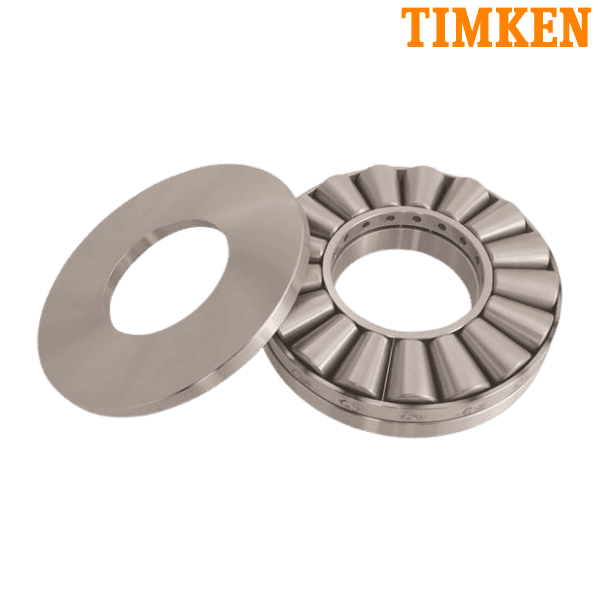

** Images are for representation purposes only
