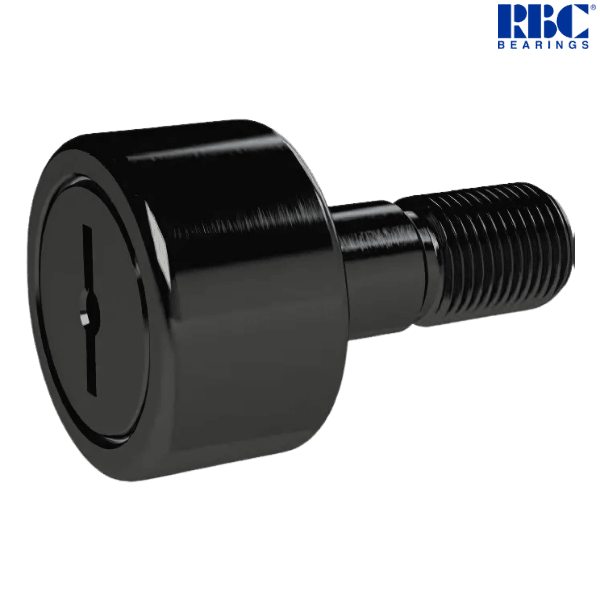

S 32 L RBC

Brand - RBC
Item Number - S 32 L RBC
Also Known As - S32L
Cam Followers (Slotted Head) - S 32
Cam Followers (Hexlube® Socket Head and Sealed) - S 32 LW
Basic Number - (-32)
Category - Cam Followers with Standard Stud (Slotted Head and Sealed)

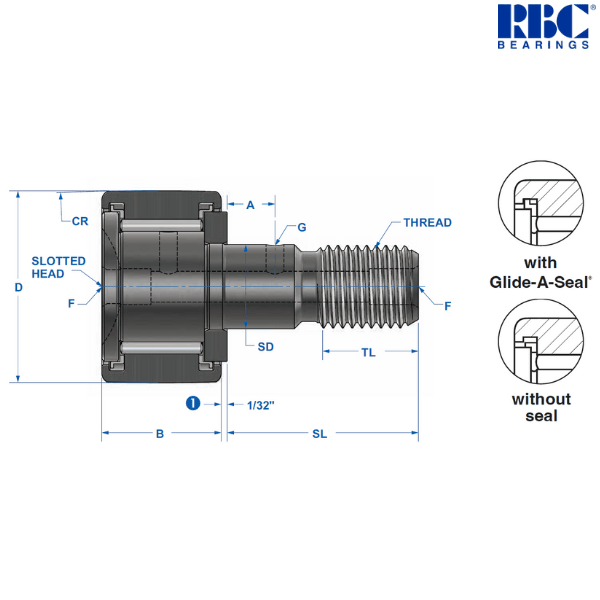

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 1 inch
Outside Diameter (D) - 1 (+ .000 to - .001) inch
Roller Width (B) - 0.625 (+ .000 to - .005) inch
Shank Diameter (SD) - 0.4375 (+ .001 to - .000) inch
Shank Length (SL) - 1 inch
Eff. Thread Length (TL) - 0.5 inch
Thread Class 2A - 7/16-20
Approximate Weight - 0.16 lbs
Lube Fitting (F) - 3/16 inch *
Loc. (A) - 0.25 inch
Diameter (G) - 0.093 inch
Socket Head Wrench Size - 0.25 inch
Speed Limit - 4500 rpm
Dynamic Capacity (C) - 2300 lbf
Static Capacity (C0) - 4800 lbf ***
Maximum Allowable Load - 2390 lbf
Track Capacity @ 40 Rc - 1690 lbf
Maximum Clamping Torque - 150 in-lbf ****
Hsg. Bore - 0.4375 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 0.64 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.073 kg

Description of Suffixes and Prefixes :
S - Standard Stud (Screwdriver Slot Head)
L - Sealed

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• (1) 1/16" for sizes S 160 LW and larger. (Refer to the Image)
• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* Sizes S 16 LW through S 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.

♦ ♦ Images are for representation purposes only
