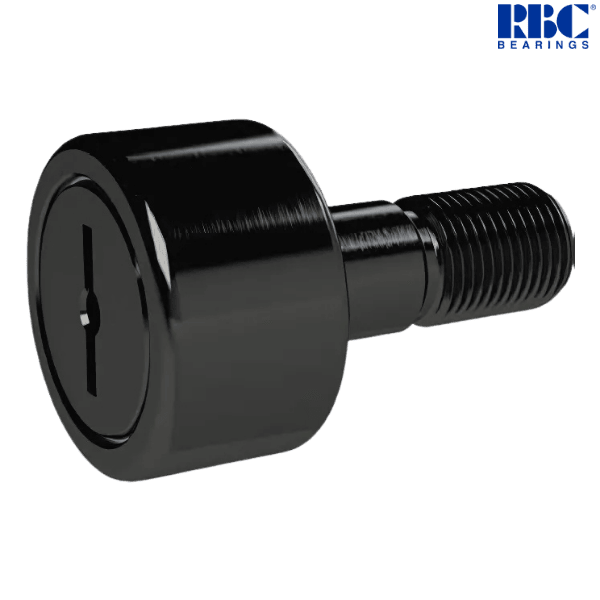

S 24 RBC

Brand - RBC
Item Number - S 24 RBC
Also Known As - S24
Cam Followers (Slotted Head and Sealed) - S 24 L
Cam Followers (Hexlube® Socket Head and Sealed) - S 24 LW
Basic Number - (-24)
Category - Cam Followers with Standard Stud (Slotted Head)

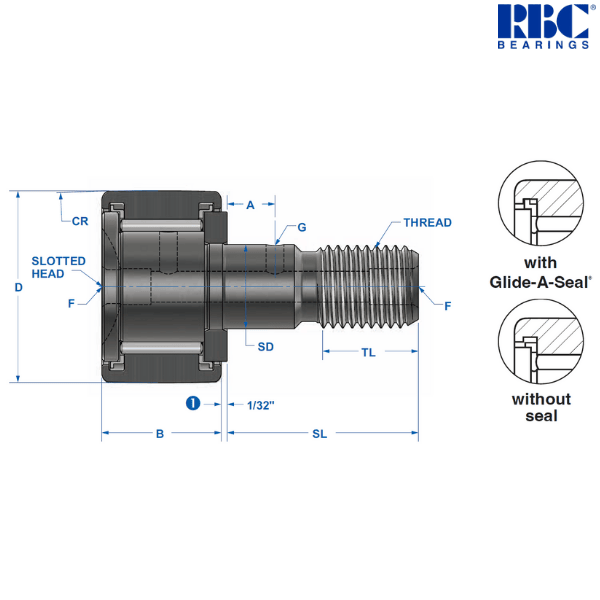

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 0.75 inch
Outside Diameter (D) - 0.75 (+ .000 to - .001) inch
Roller Width (B) - 0.5 (+ .000 to - .005) inch
Shank Diameter (SD) - 0.375 (+ .001 to - .000) inch
Shank Length (SL) - 0.875 inch
Eff. Thread Length (TL) - 0.375 inch
Thread Class 2A - 3/8-24
Approximate Weight - 0.08 lbs
Lube Fitting (F) - 3/16 inch *
Loc. (A) - 0.25 inch
Diameter (G) - 0.093 inch
Socket Head Wrench Size - 0.1875 inch
Speed Limit - 5000 rpm
Dynamic Capacity (C) - 1800 lbf
Static Capacity (C0) - 3100 lbf ***
Maximum Allowable Load - 1840 lbf
Track Capacity @ 40 Rc - 880 lbf
Maximum Clamping Torque - 55 in-lbf ****
Hsg. Bore - 0.375 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 0.5 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.036 kg

Description of Suffixes and Prefixes :
S - Standard Stud (Screwdriver Slot Head)

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• (1) 1/16" for sizes S 160 LW and larger. (Refer to the Image)
• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* Sizes S 16 LW through S 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.

♦ ♦ Images are for representation purposes only
