S 192 LW RBC

Brand - RBC
Item Number - S 192 LW RBC
Also Known As - S192LW
Basic Number - (-192)
Category - Cam Followers with Standard Stud (Hexlube® Socket Head and Sealed)

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 6 inch
Outside Diameter (D) - 6 (+ .000 to - .001) inch
Roller Width (B) - 3.25 (+ .000 to - .005) inch
Shank Diameter (SD) - 2.5 (+ .001 to - .000) inch
Shank Length (SL) - 6 inch
Eff. Thread Length (TL) - 3 inch
Thread Class 2A - 2 1/2-12
Approximate Weight - 32.9 lbs
Lube Fitting (F) - 1/4 NPT inch *
Loc. (A) - 1 inch
Diameter (G) - 0.187 inch
Socket Head Wrench Size - 1 inch
Speed Limit - 800 rpm
Dynamic Capacity (C) - 62900 lbf
Static Capacity (C0) - 165500 lbf ***
Maximum Allowable Load - 90000 lbf
Track Capacity @ 40 Rc - 52000 lbf
Maximum Clamping Torque - 3000 in-lbf ****
Hsg. Bore - 2.5 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 4.5 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 14.921 kg

Replaces (Direct Interchange) :
McGill - CF-6-SB
KOYO - CRSB-96

Replaces :
RBC - S192, S192L
McGill - CF-6, CF-6-S
KOYO - CR-96, CRS-96

Description of Suffixes and Prefixes :
S - Standard Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :

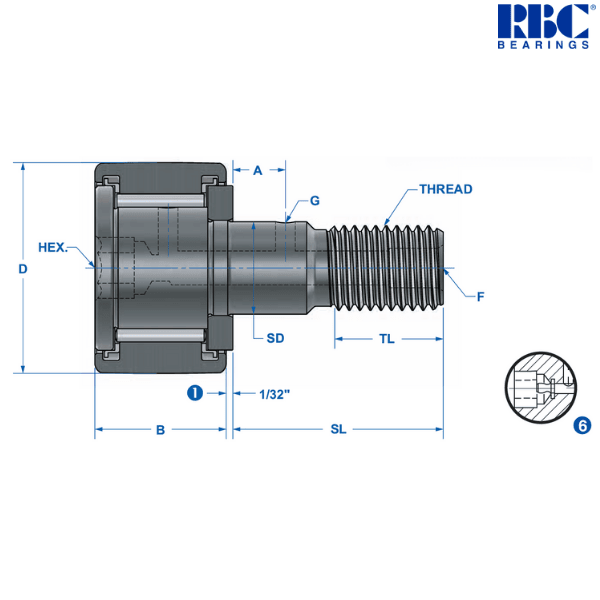

• (1) 1/16" for sizes S 160 LW and larger. (Refer to the Image)

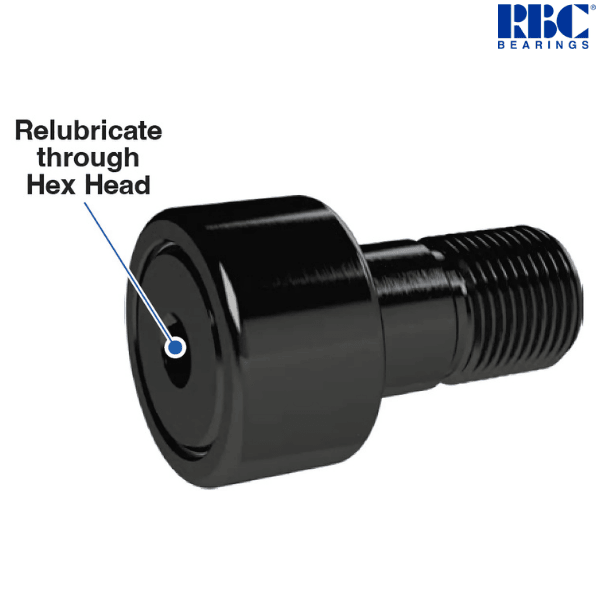

• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* Sizes S 16 LW through S 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.

♦ ♦ Images are for representation purposes only
