Description
Brand - IKO
Item Number - RNAST 8 R IKO
Also Known As - RNAST8R

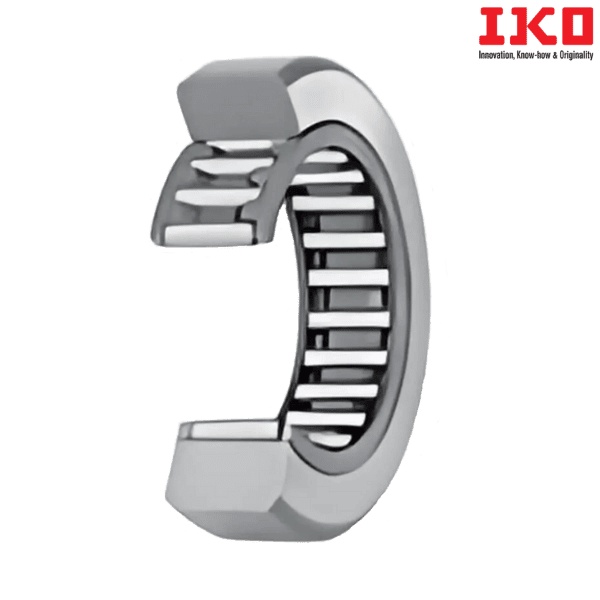

Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Crowned Outer Ring)
Shaft Diameter (mm) - 12

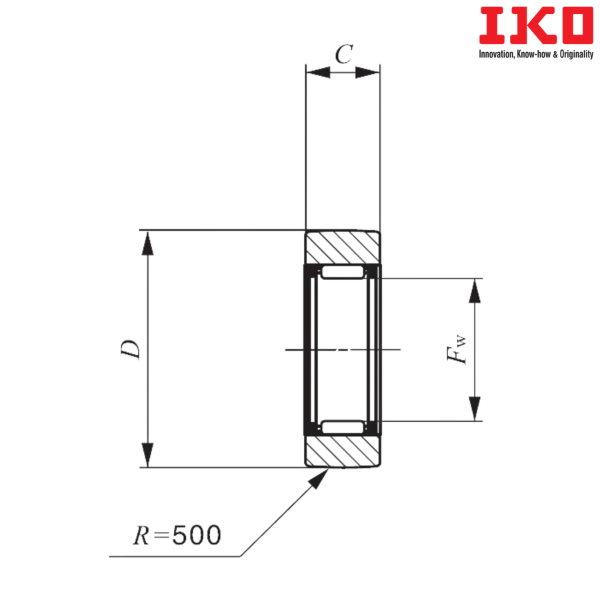

Boundary dimension (Fw) mm - 12
Boundary dimension (D) mm - 24
Boundary dimension (C) mm - 9.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 0.6
Basic Dynamic Load Rating (C) N - 5650
Basic Static Load Rating (C0) N - 5890
Open Type Bearing with Cylindrical Outer Ring - RNAST 8
Weight (kg) - 0.0235
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
