Description
Brand - IKO
Item Number - RNAST 6 R IKO
Also Known As - RNAST6R

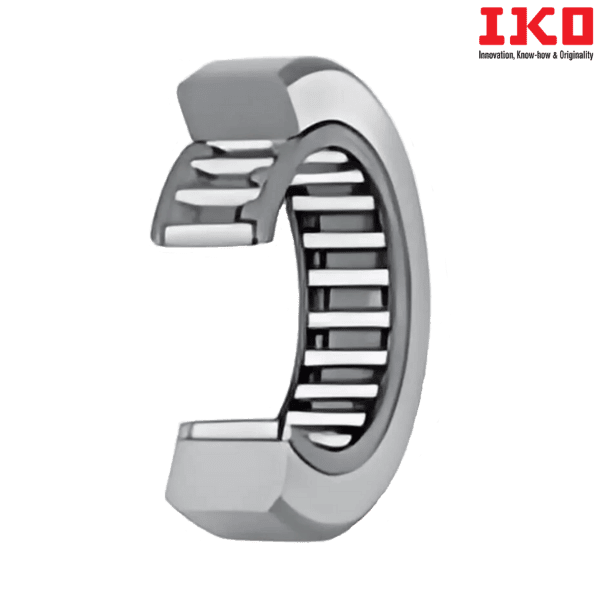

Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Crowned Outer Ring)
Shaft Diameter (mm) - 10

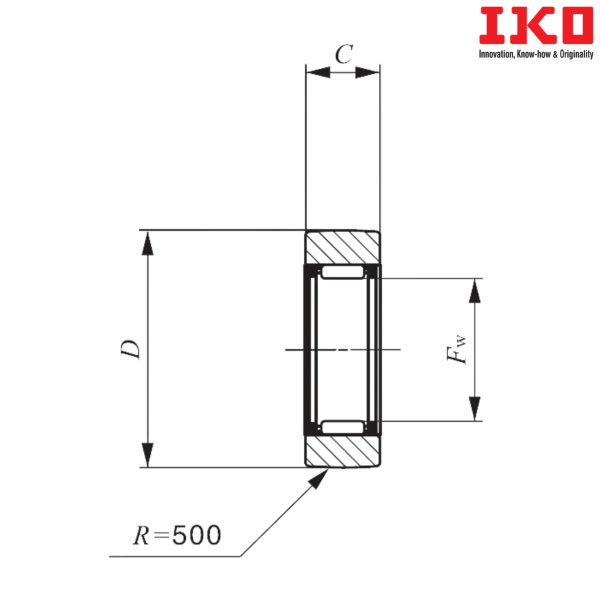

Boundary dimension (Fw) mm - 10
Boundary dimension (D) mm - 19
Boundary dimension (C) mm - 9.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 0.3
Basic Dynamic Load Rating (C) N - 4160
Basic Static Load Rating (C0) N - 4550
Open Type Bearing with Cylindrical Outer Ring - RNAST 6
Weight (kg) - 0.0139
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
