RNAST 6 IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - RNAST 6 IKO
Also Known As - RNAST6
Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 10

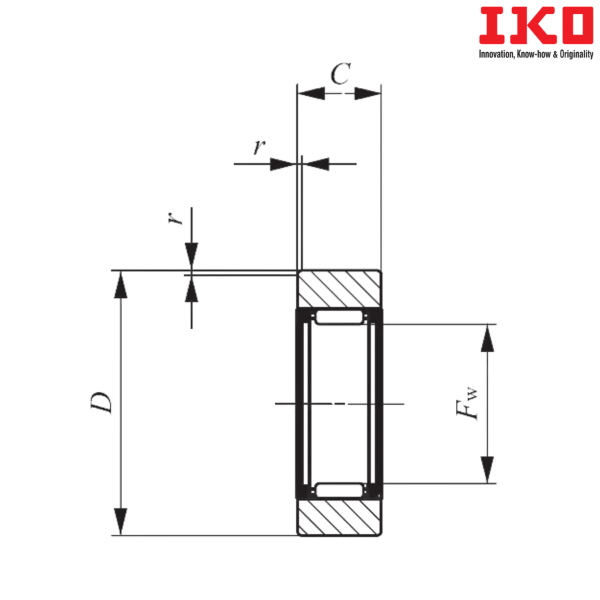

Boundary dimension (Fw) mm - 10
Boundary dimension (D) mm - 19
Boundary dimension (C) mm - 9.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 0.3
Basic Dynamic Load Rating (C) N - 4160
Basic Static Load Rating (C0) N - 4550
Open Type Bearing with Crowned Outer Ring - RNAST 6 R
Weight (kg) - 0.0139

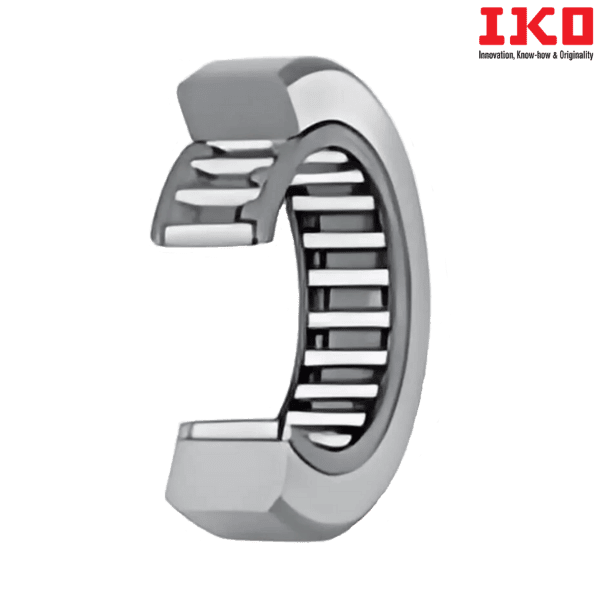

** Images are for representation purposes only
