RNAST 45 IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - RNAST 45 IKO
Also Known As - RNAST45
Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 55

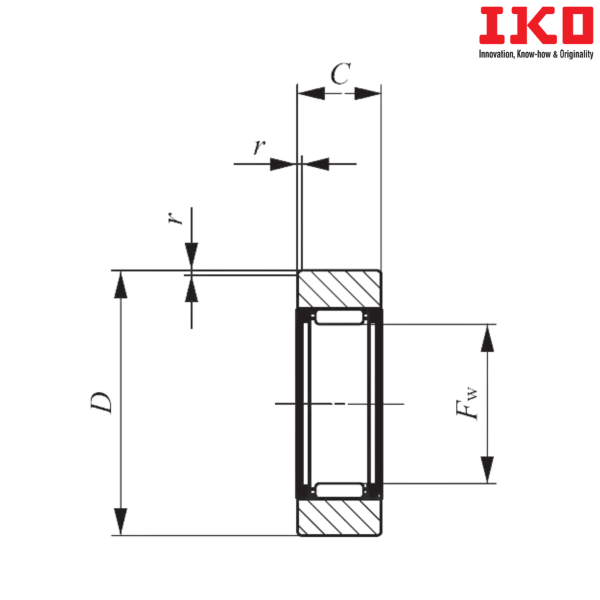

Boundary dimension (Fw) mm - 55
Boundary dimension (D) mm - 85
Boundary dimension (C) mm - 19.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1.5
Basic Dynamic Load Rating (C) N - 37400
Basic Static Load Rating (C0) N - 66400
Open Type Bearing with Crowned Outer Ring - RNAST 45 R
Weight (kg) - 0.46

** Images are for representation purposes only
