Description
Brand - IKO
Item Number - RNAST 40 R IKO
Also Known As - RNAST40R
Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Crowned Outer Ring)
Shaft Diameter (mm) - 50

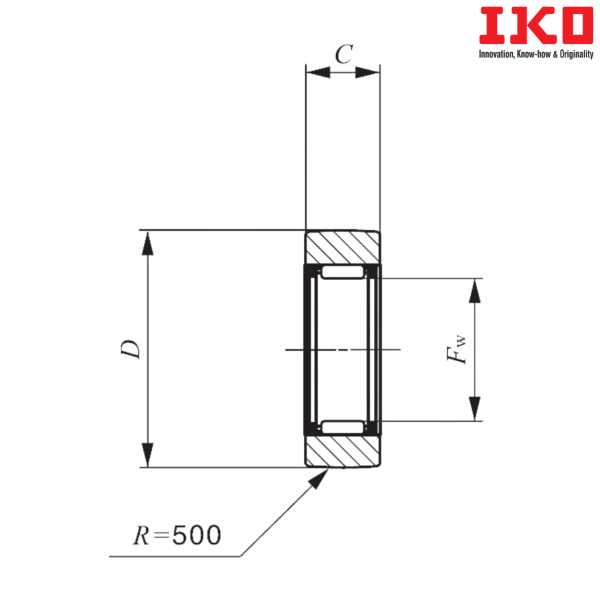

Boundary dimension (Fw) mm - 50
Boundary dimension (D) mm - 80
Boundary dimension (C) mm - 19.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1.5
Basic Dynamic Load Rating (C) N - 35900
Basic Static Load Rating (C0) N - 61100
Open Type Bearing with Cylindrical Outer Ring - RNAST 40
Weight (kg) - 0.42
Suffix Description :
R - With Crowned Outer Ring

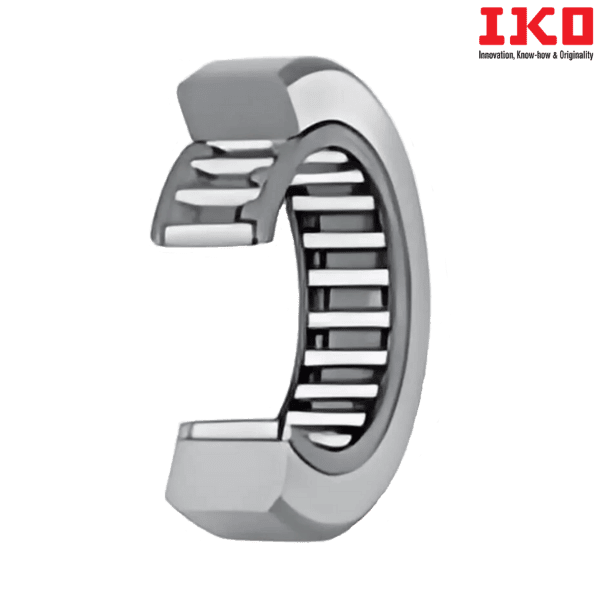

** Images are for representation purposes only
