Description

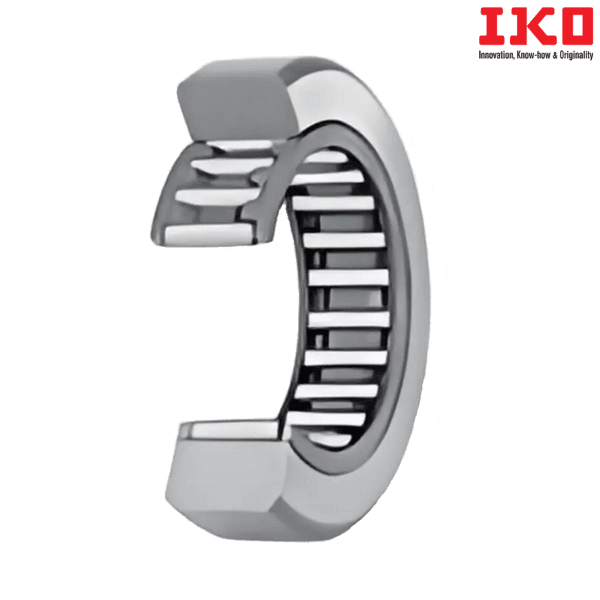

Brand - IKO
Item Number - RNAST 35 R IKO
Also Known As - RNAST35R
Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Crowned Outer Ring)
Shaft Diameter (mm) - 42

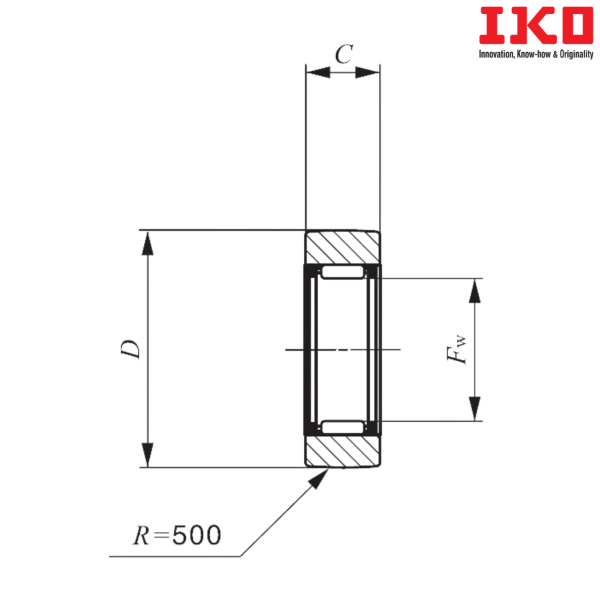

Boundary dimension (Fw) mm - 42
Boundary dimension (D) mm - 72
Boundary dimension (C) mm - 19.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Basic Dynamic Load Rating (C) N - 32400
Basic Static Load Rating (C0) N - 50600
Open Type Bearing with Cylindrical Outer Ring - RNAST 35
Weight (kg) - 0.375
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
