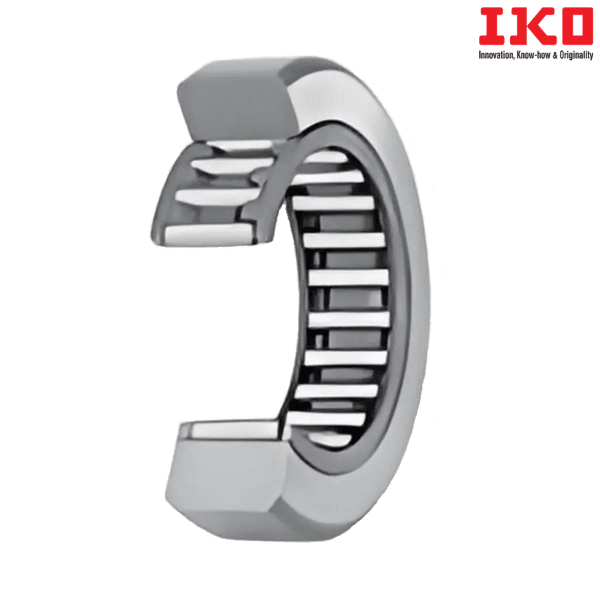

RNAST 30 IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - RNAST 30 IKO
Also Known As - RNAST30
Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 38

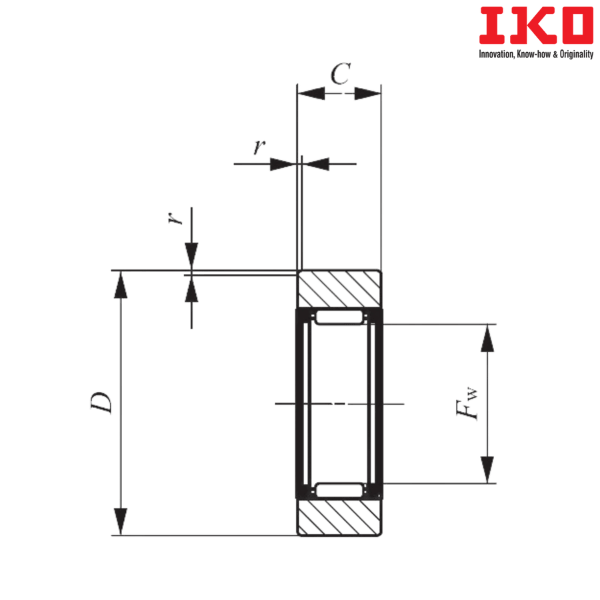

Boundary dimension (Fw) mm - 38
Boundary dimension (D) mm - 62
Boundary dimension (C) mm - 19.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Basic Dynamic Load Rating (C) N - 30500
Basic Static Load Rating (C0) N - 45400
Open Type Bearing with Crowned Outer Ring - RNAST 30 R
Weight (kg) - 0.255

** Images are for representation purposes only
