Description
Brand - IKO
Item Number - RNAST 25 R IKO
Also Known As - RNAST25R

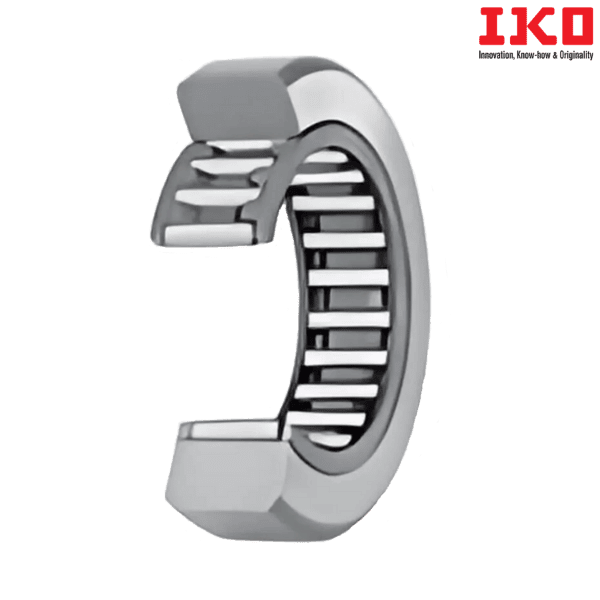

Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Crowned Outer Ring)
Shaft Diameter (mm) - 30

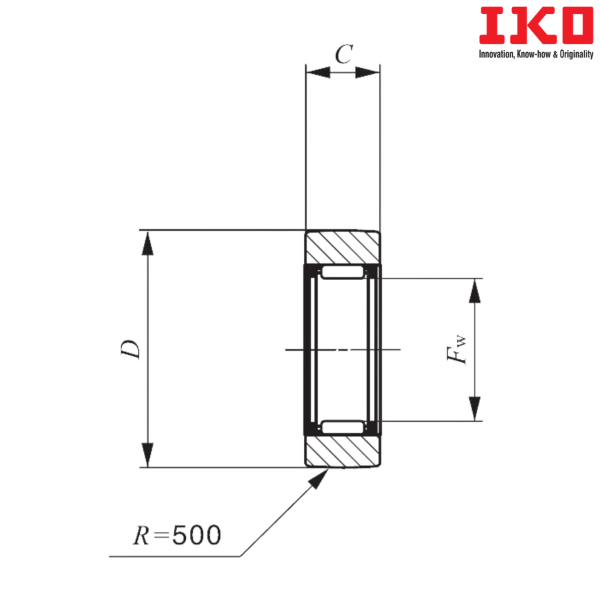

Boundary dimension (Fw) mm - 30
Boundary dimension (D) mm - 52
Boundary dimension (C) mm - 15.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Basic Dynamic Load Rating (C) N - 20800
Basic Static Load Rating (C0) N - 28400
Open Type Bearing with Cylindrical Outer Ring - RNAST 25
Weight (kg) - 0.152
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
