RNAST 20 IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO

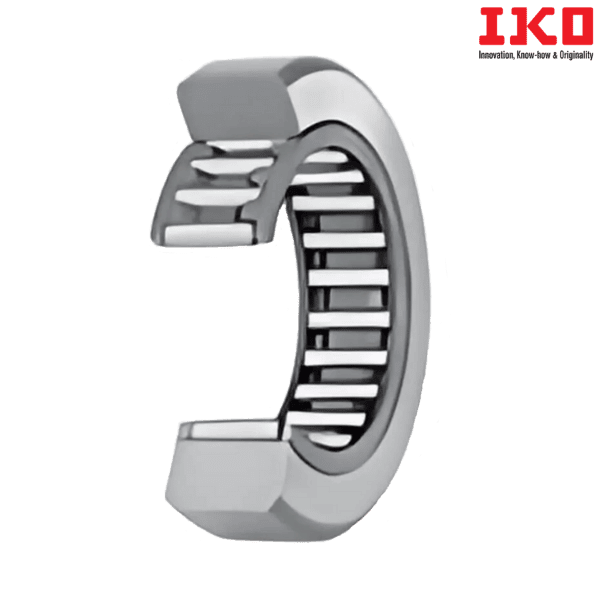

Item Number - RNAST 20 IKO
Also Known As - RNAST20
Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 25

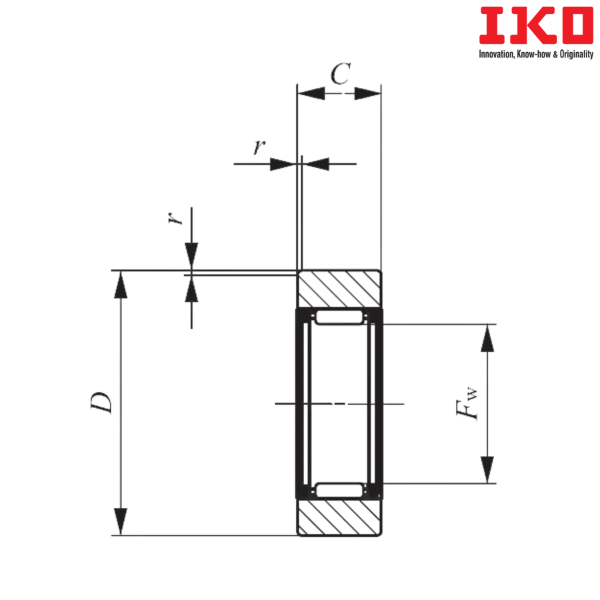

Boundary dimension (Fw) mm - 25
Boundary dimension (D) mm - 47
Boundary dimension (C) mm - 15.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Basic Dynamic Load Rating (C) N - 19400
Basic Static Load Rating (C0) N - 24500
Open Type Bearing with Crowned Outer Ring - RNAST 20 R
Weight (kg) - 0.135
