Description
Brand - IKO
Item Number - RNAST 17 R IKO
Also Known As - RNAST17R
Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Crowned Outer Ring)
Shaft Diameter (mm) - 22

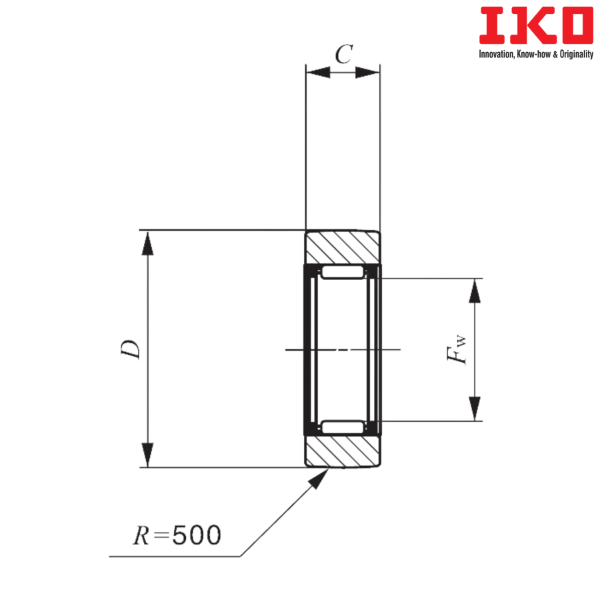

Boundary dimension (Fw) mm - 22
Boundary dimension (D) mm - 40
Boundary dimension (C) mm - 15.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Basic Dynamic Load Rating (C) N - 17600
Basic Static Load Rating (C0) N - 20900
Open Type Bearing with Cylindrical Outer Ring - RNAST 17
Weight (kg) - 0.09
Suffix Description :
R - With Crowned Outer Ring

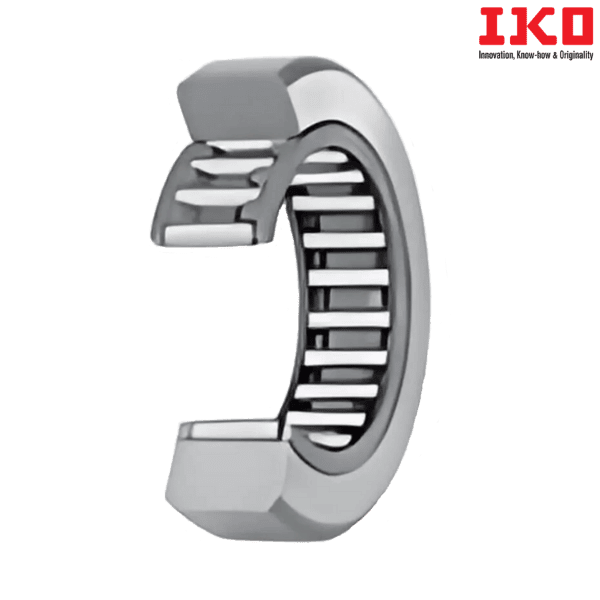

** Images are for representation purposes only
