Description
Brand - IKO
Item Number - RNAST 12 IKO
Also Known As - RNAST12
Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 16

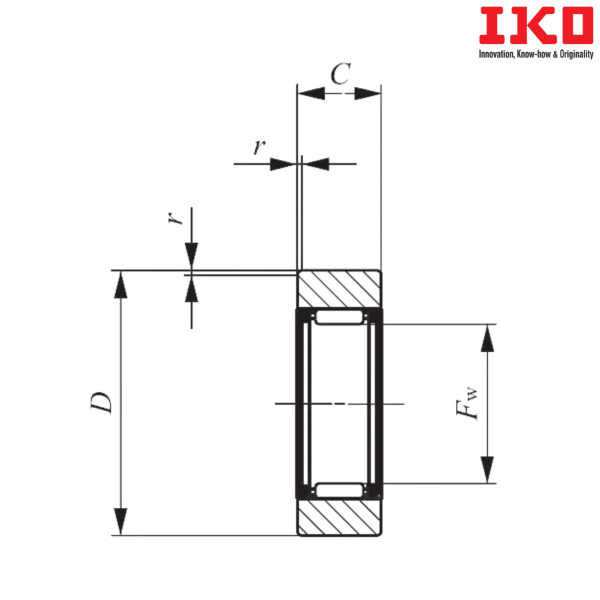

Boundary dimension (Fw) mm - 16
Boundary dimension (D) mm - 32
Boundary dimension (C) mm - 11.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Basic Dynamic Load Rating (C) N - 10500
Basic Static Load Rating (C0) N - 10900
Open Type Bearing with Crowned Outer Ring - RNAST 12 R
Weight (kg) - 0.0495

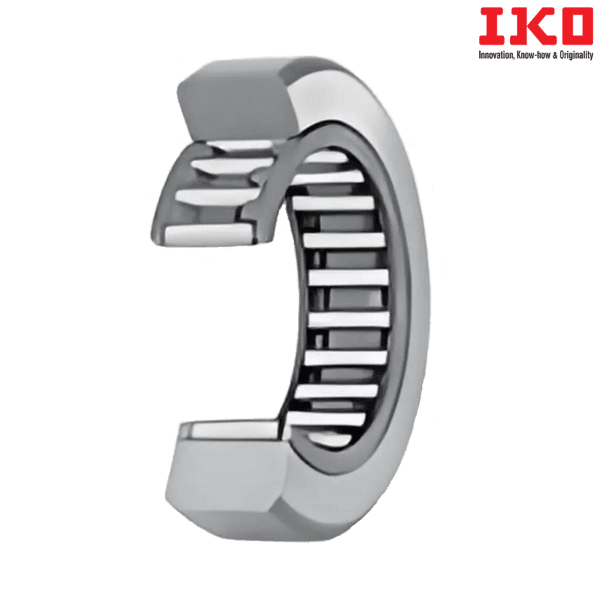

** Images are for representation purposes only
