Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - RNAST 10 IKO
Also Known As - RNAST10

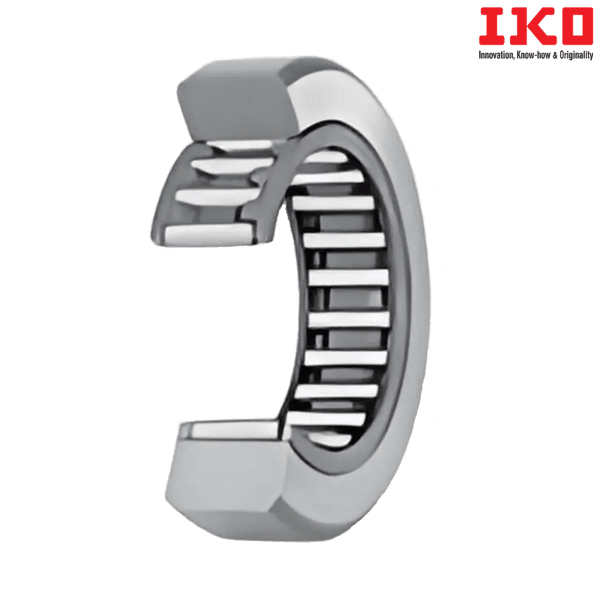

Category - Separable Roller Followers, Open Type With Cage/Without Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 14

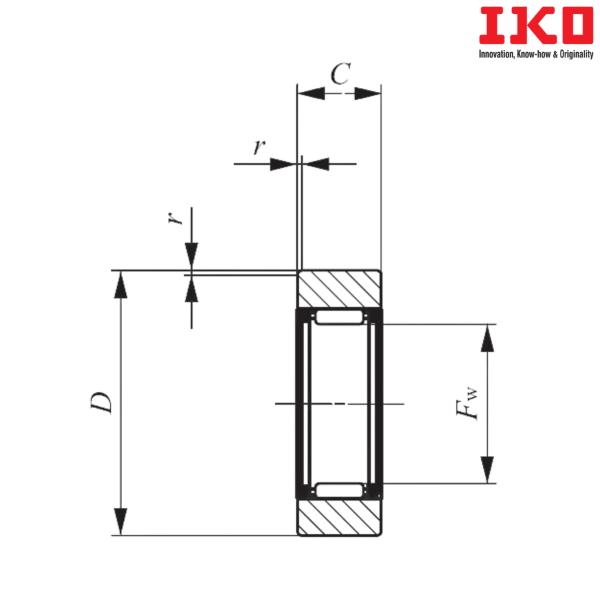

Boundary dimension (Fw) mm - 14
Boundary dimension (D) mm - 30
Boundary dimension (C) mm - 11.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Basic Dynamic Load Rating (C) N - 9790
Basic Static Load Rating (C0) N - 9680
Open Type Bearing with Crowned Outer Ring - RNAST 10 R
Weight (kg) - 0.0425

** Images are for representation purposes only
