RNA11040 B6 NADELLA

Brand - NADELLA
Item Number - RNA11040 B6 NADELLA
Category - Full Complement Needle Roller Bearing
Also Known As - RNA11040B6

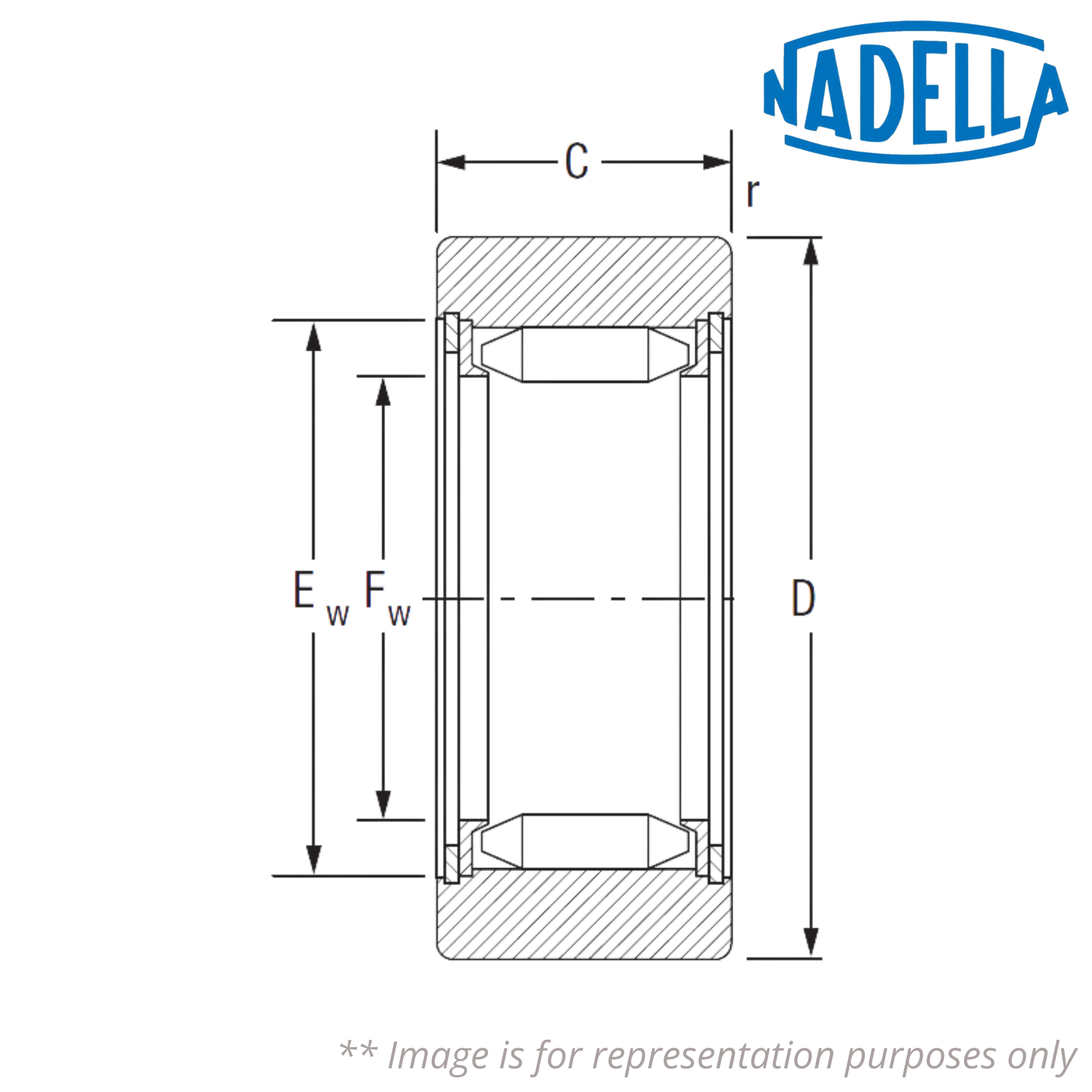

Principal Dimensions & Load Ratings (Metric) :
∅ Outer Diameter (D) - 80 mm
Inner Diameter (Fw *) - 49.7 mm
Outer Diameter (D) - 80 (h7) mm
Width (C) - 22 mm
Dimension (Ew) - 55.7 mm
Minimum Chamfer Dimension (r) - 0.85 mm
Weight - 0.45 kg
Load coefficients (Cw *) - 34000 N
Load coefficients (Din Fr *) - 47000 N
Load coefficients (Stat. For *) - 68000 N
Speed Limit with Greasing - 1620 rpm

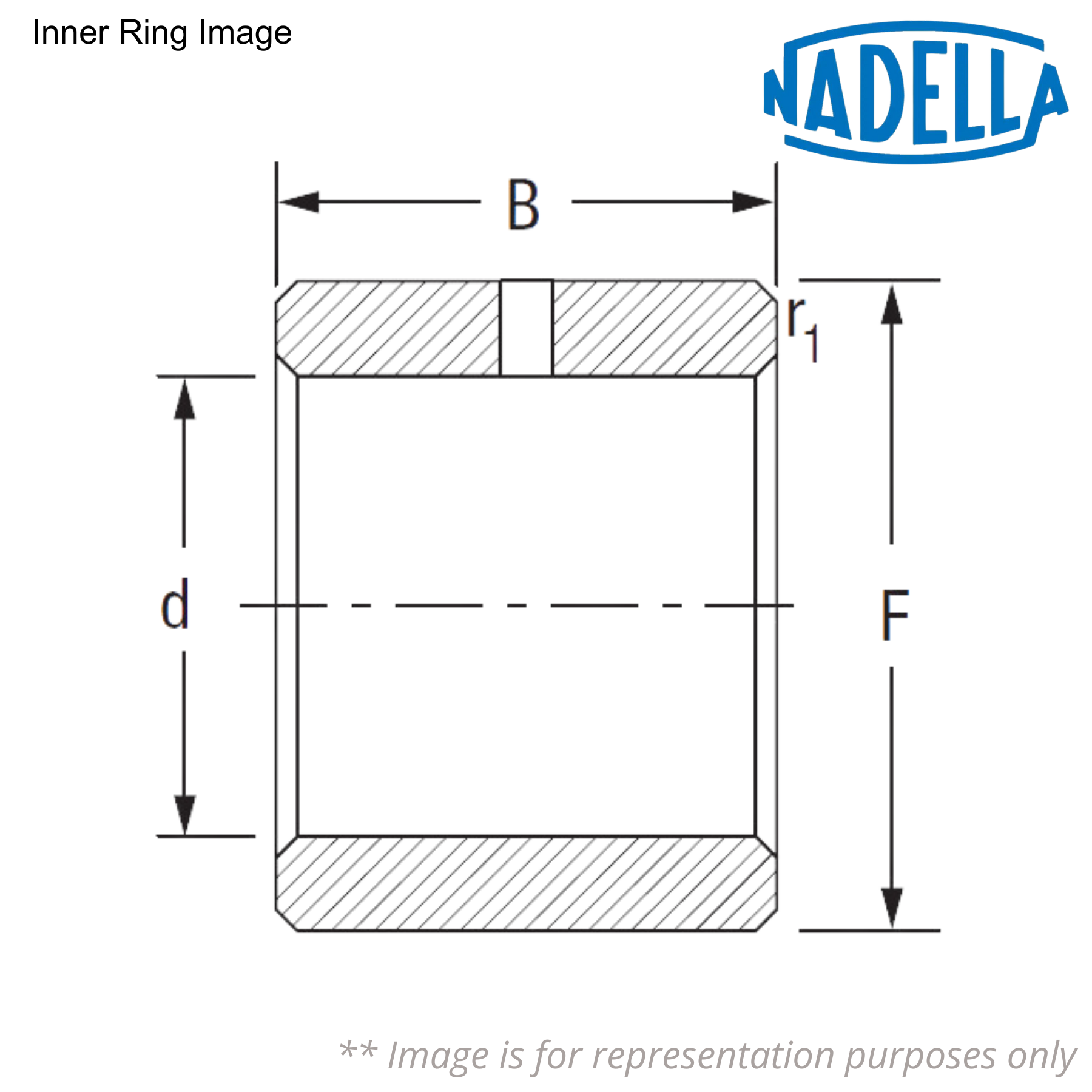

Dimensions of Compatible Inner Ring :
Part Number of Compatible Inner Ring - BIC 2040
∅ Shaft Diameter - 40 mm
Inner Diameter (d) - 40 mm
Outer Diameter (F) - 49.7 mm
Width (B) - 22 (0 to -0.12) mm
Minimum Chamfer Dimension (r1) - 0.85 mm
Weight - 0.115 kg
For Cam Follower Type - 11040

Description of Suffixes and Prefixes :
RNA - Full complement needle bearing without inner ring
B6 - Convex Outer Diameter For RNA 11 000 Series Cam Followers

Other Salient points to be noted :
* Recommended tolerance per Fw diameter of the pivot without the use of inner ring: h5

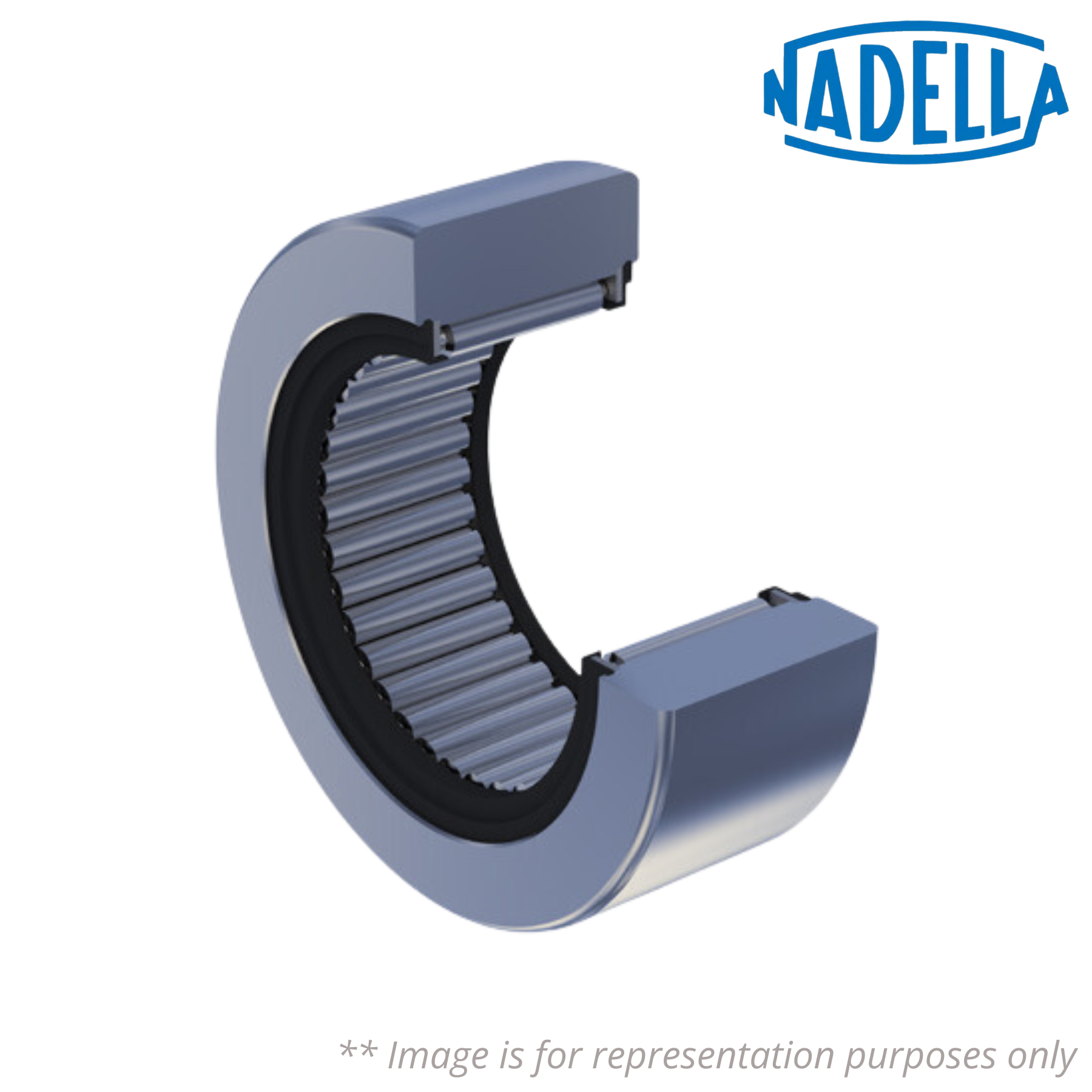

♦ ♦ Images are for representation purposes only
