RNA11012 B6 NADELLA

Brand - NADELLA
Item Number - RNA11012 B6 NADELLA
Category - Full Complement Needle Roller Bearing
Also Known As - RNA11012B6

Principal Dimensions & Load Ratings (Metric) :
∅ Outer Diameter (D) - 32 mm
Inner Diameter (Fw *) - 17.6 mm
Outer Diameter (D) - 32 (h7) mm
Width (C) - 15 mm
Dimension (Ew) - 22.6 mm
Minimum Chamfer Dimension (r) - 0.35 mm
Weight - 0.057 kg
Load coefficients (Cw *) - 10800 N
Load coefficients (Din Fr *) - 9100 N
Load coefficients (Stat. For *) - 12700 N
Speed Limit with Greasing - 4200 rpm

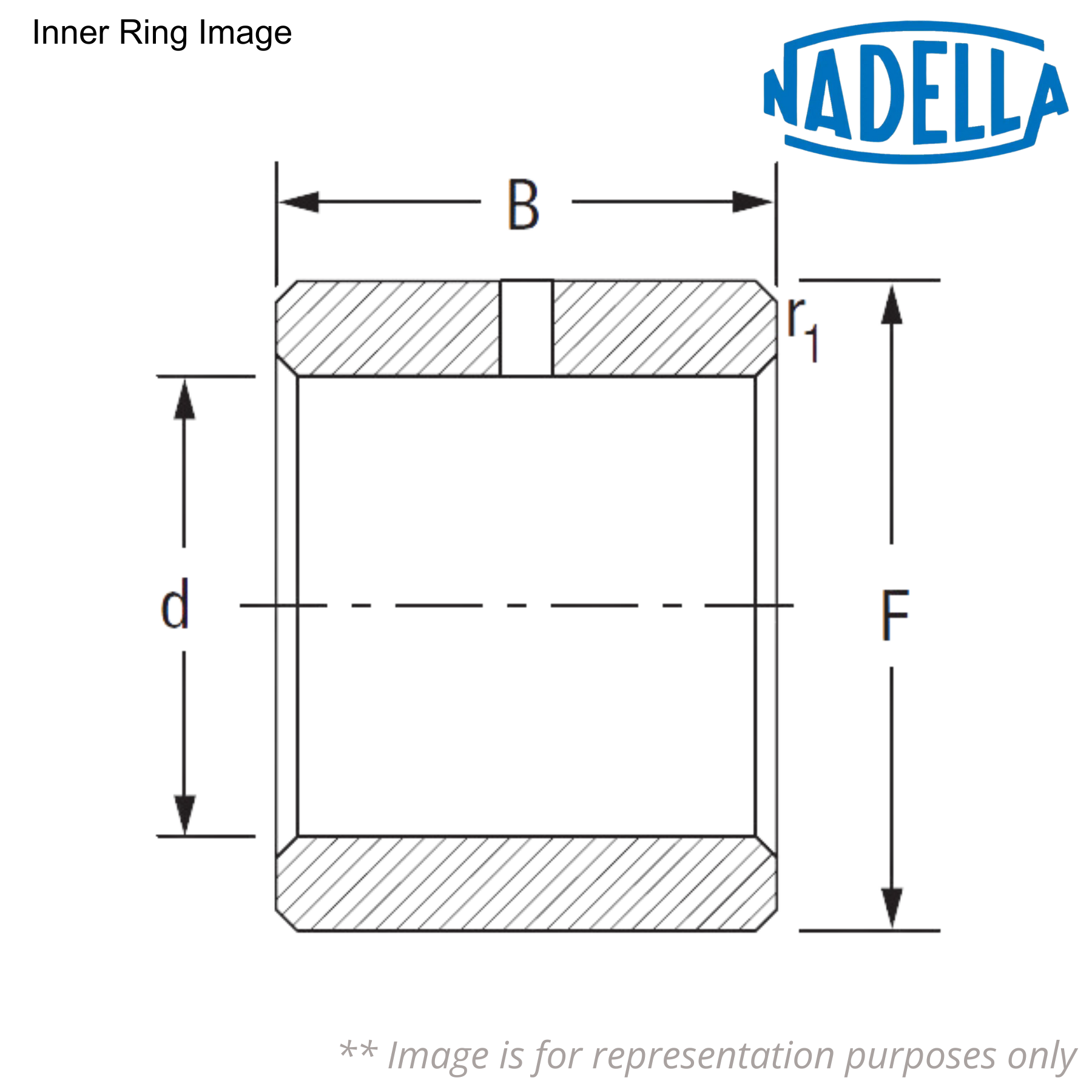

Dimensions of Compatible Inner Ring :
Part Number of Compatible Inner Ring - BIC 1012
∅ Shaft Diameter - 12 mm
Inner Diameter (d) - 12 mm
Outer Diameter (F) - 17.6 mm
Width (B) - 15 (0 to -0.10) mm
Minimum Chamfer Dimension (r1) - 0.35 mm
Weight - 0.016 kg
For Cam Follower Type - 11012

Description of Suffixes and Prefixes :
RNA - Full complement needle bearing without inner ring
B6 - Convex Outer Diameter For RNA 11 000 Series Cam Followers

Other Salient points to be noted :
* Recommended tolerance per Fw diameter of the pivot without the use of inner ring: h5

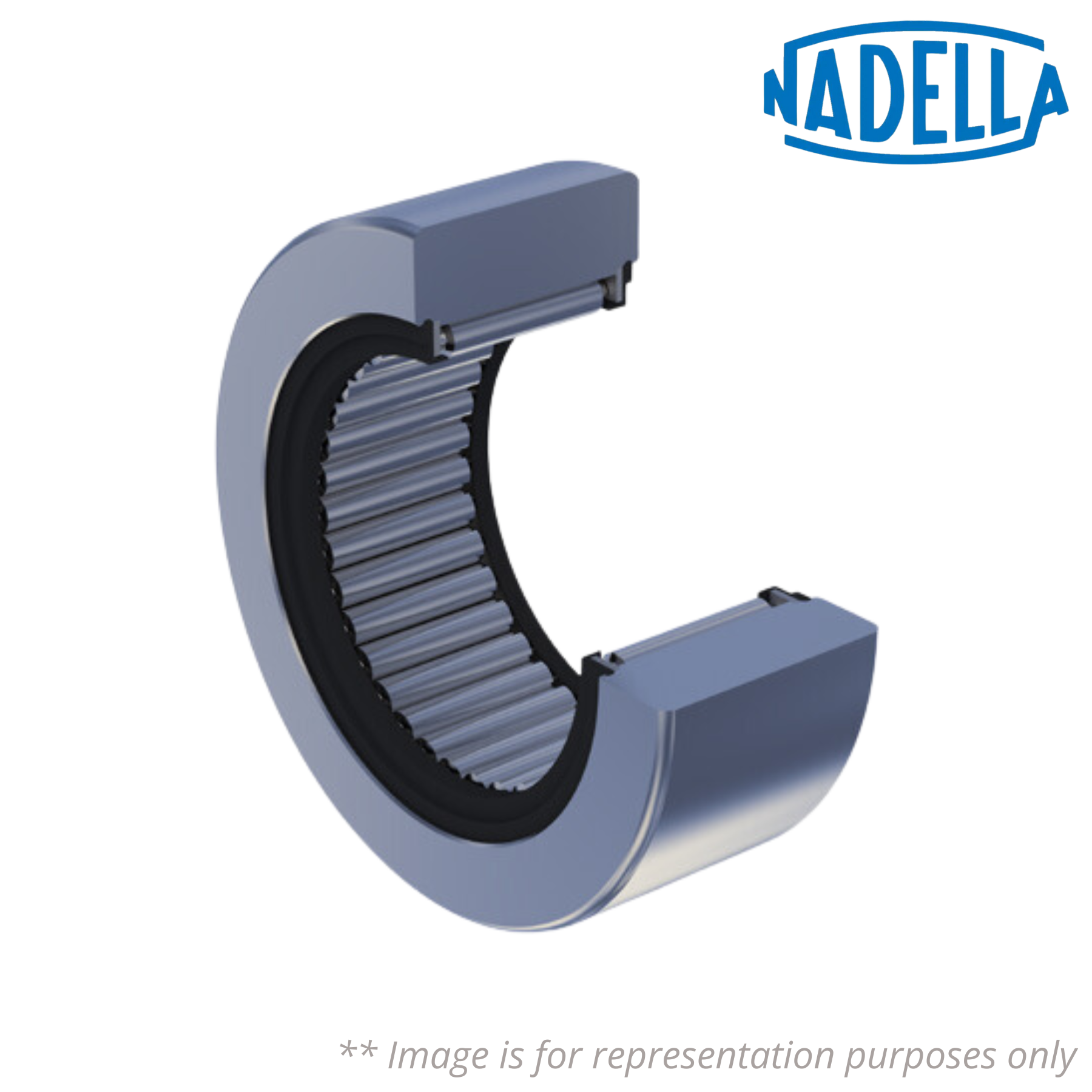

♦ ♦ Images are for representation purposes only
