RNA11005 B6 NADELLA

Brand - NADELLA
Item Number - RNA11005 B6 NADELLA
Category - Full Complement Needle Roller Bearing
Also Known As - RNA11005B6

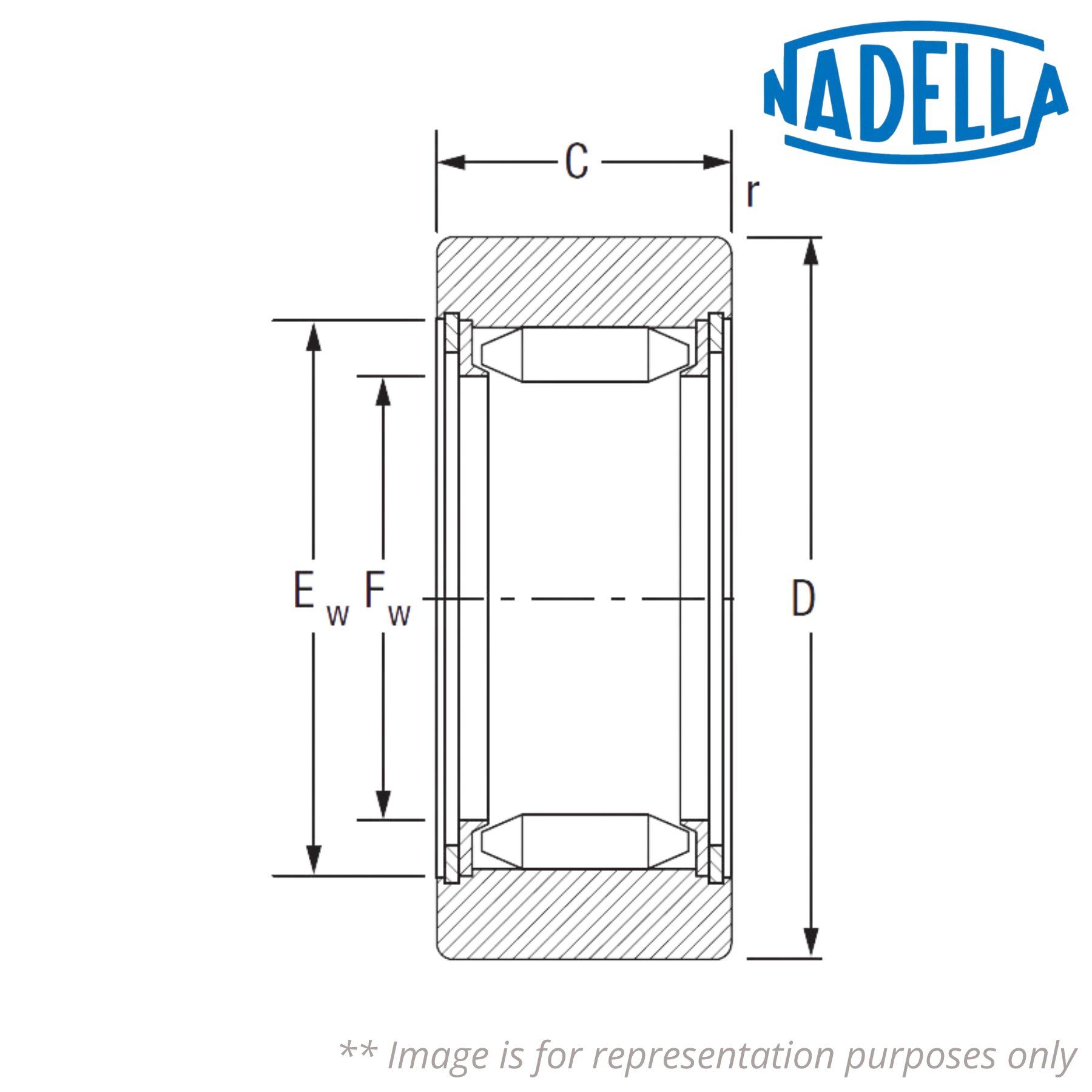

Principal Dimensions & Load Ratings (Metric) :
∅ Outer Diameter (D) - 19 mm
Inner Diameter (Fw *) - 7.3 mm
Outer Diameter (D) - 19 (h7) mm
Width (C) - 12 mm
Dimension (Ew) - 7.3 mm
Minimum Chamfer Dimension (r) - 0.35 mm
Weight - 0.019 kg
Load coefficients (Cw *) - 5100 N
Load coefficients (Din Fr *) - 4050 N
Load coefficients (Stat. For *) - 4050 N
Speed Limit with Greasing - 8700 rpm

Description of Suffixes and Prefixes :
RNA - Full complement needle bearing without inner ring
B6 - Convex Outer Diameter For RNA 11 000 Series Cam Followers

Other Salient points to be noted :
* Recommended tolerance per Fw diameter of the pivot without the use of inner ring: h5

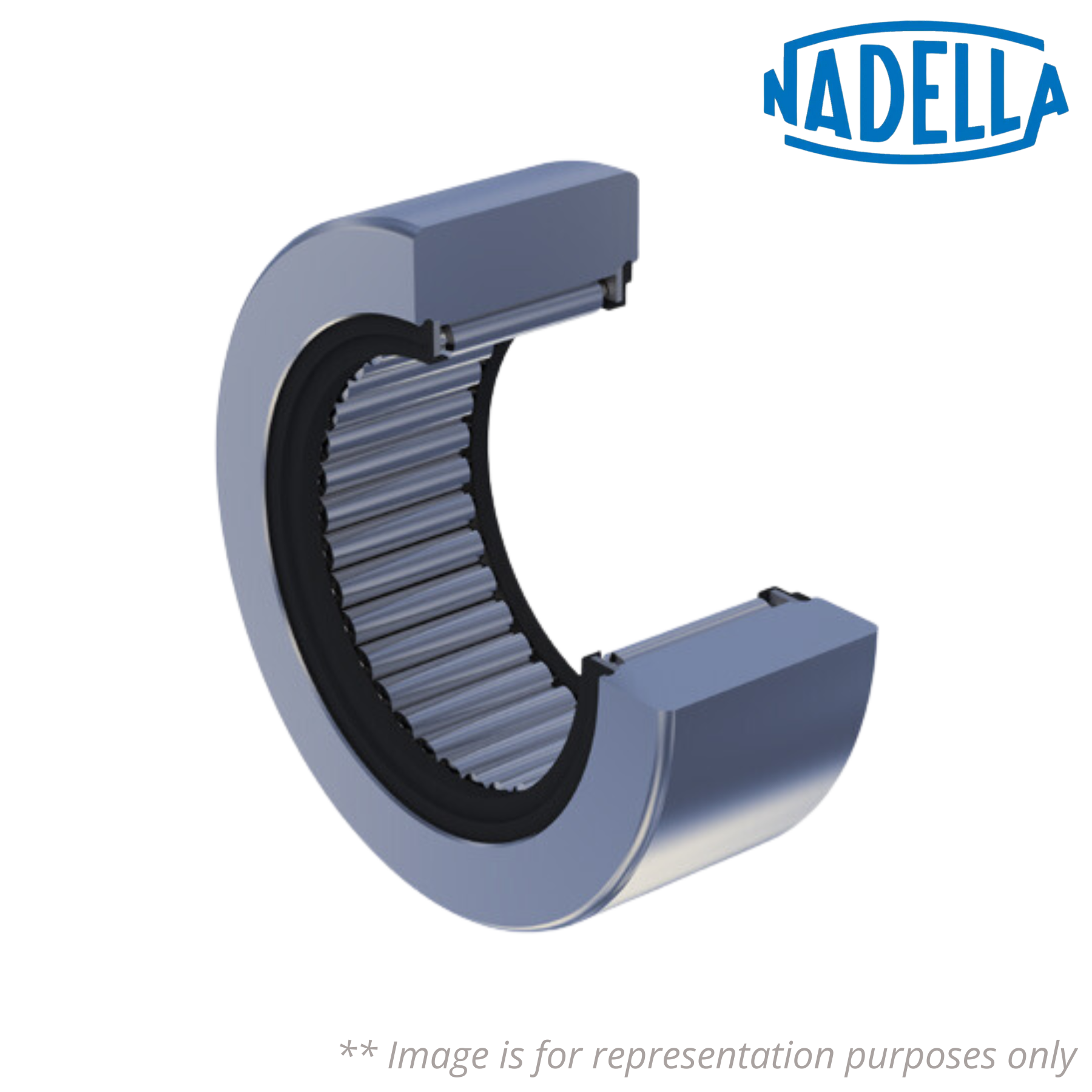

♦ ♦ Images are for representation purposes only
