Description
Brand - IKO
Item Number - RNA 6905U IKO
Also Known As - RNA6905U
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring
Seal - One Seal
Shaft Diameter (mm) - 30
Boundary Dimension (Fw) mm - 30
Outer Diameter (D) mm - 42
Boundary Dimension (C) mm - 30
Minimum Boundary Dimension (rs) mm - 0.3

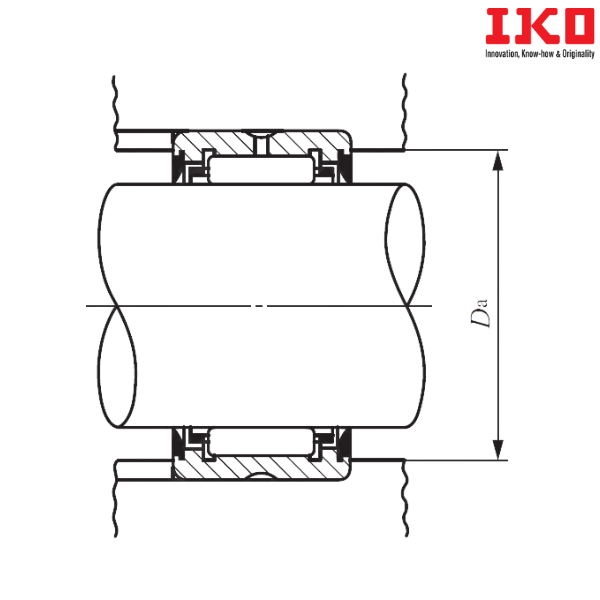

Maximum Standard Mounting Dimension (Da) mm - 40
Basic Dynamic Load Rating (C) N - 39200
Basic Static Load Rating (C0) N - 58700
Allowable Rotational Speed (min-1) - 6500
Weight (kg) - 0.111
Bearing With Two Seals - RNA 6905UU
** Images are for representation purposes only
