Description
Brand - IKO
Item Number - RNA 69/28UU IKO
Also Known As - RNA69/28UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 32
Boundary Dimension (Fw) mm - 32
Outer Diameter (D) mm - 45
Boundary Dimension (C) mm - 30
Minimum Boundary Dimension (rs) mm - 0.3
Maximum Standard Mounting Dimension (Da) mm - 43
Basic Dynamic Load Rating (C) N - 38900
Basic Static Load Rating (C0) N - 59100
Allowable Rotational Speed (min-1) - 6000
Weight (kg) - 0.133
Bearing With One Seal - RNA 69/28U

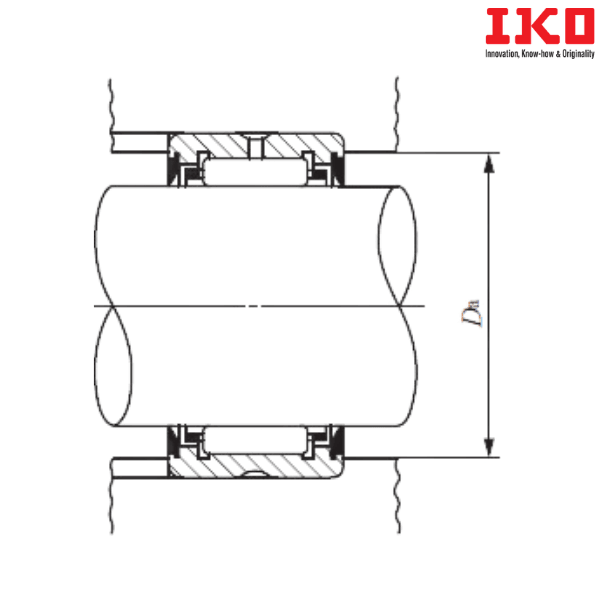

** Images are for representation purposes only
