Description
Brand - IKO
Item Number - RNA 4918U IKO
Also Known As - RNA4918U
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring
Seal - One Seal
Shaft Diameter (mm) - 105
Boundary Dimension (Fw) mm - 105
Outer Diameter (D) mm - 125
Boundary Dimension (C) mm - 35
Minimum Boundary Dimension (rs) mm - 1.1

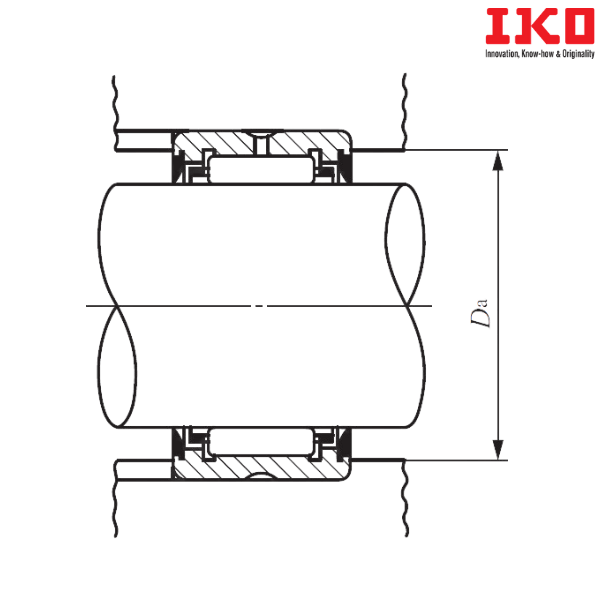

Maximum Standard Mounting Dimension (Da) mm - 118.5
Basic Dynamic Load Rating (C) N - 106000
Basic Static Load Rating (C0) N - 238000
Allowable Rotational Speed (min-1) - 1800
Weight (kg) - 0.73
Bearing With Two Seals - RNA 4918UU
** Images are for representation purposes only
