Description
Brand - IKO
Item Number - RNA 4908UU IKO
Also Known As - RNA4908UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 48
Boundary Dimension (Fw) mm - 48
Outer Diameter (D) mm - 62
Boundary Dimension (C) mm - 22
Minimum Boundary Dimension (rs) mm - 0.6
Maximum Standard Mounting Dimension (Da) mm - 58
Basic Dynamic Load Rating (C) N - 37200
Basic Static Load Rating (C0) N - 58400
Allowable Rotational Speed (min-1) - 4000
Weight (kg) - 0.15
Bearing With One Seal - RNA 4908U

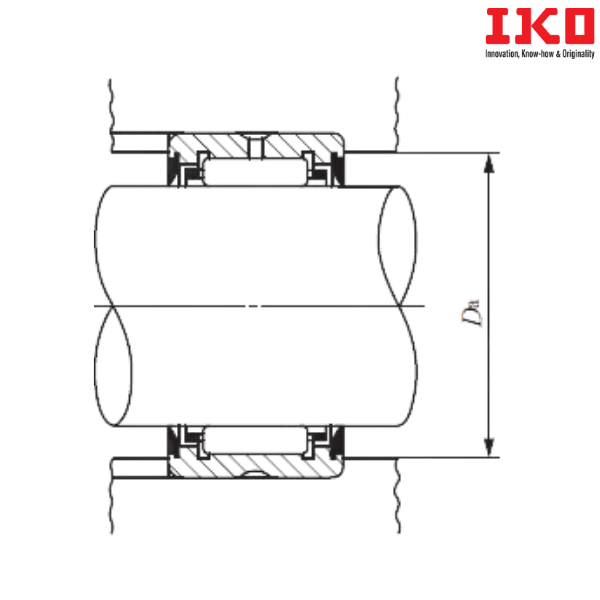

** Images are for representation purposes only
