Description
Brand - IKO
Item Number - RNA 4907UU IKO
Also Known As - RNA4907UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 42
Boundary Dimension (Fw) mm - 42
Outer Diameter (D) mm - 55
Boundary Dimension (C) mm - 20
Minimum Boundary Dimension (rs) mm - 0.6
Maximum Standard Mounting Dimension (Da) mm - 51
Basic Dynamic Load Rating (C) N - 30100
Basic Static Load Rating (C0) N - 46300
Allowable Rotational Speed (min-1) - 4500
Weight (kg) - 0.112
Bearing With One Seal - RNA 4907U

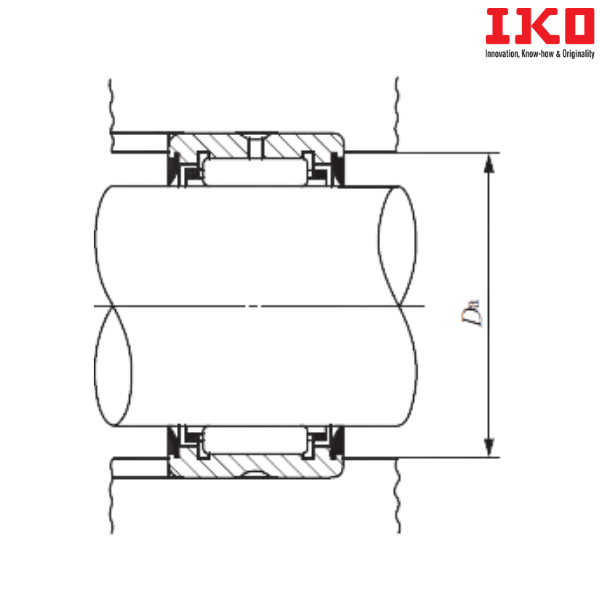

** Images are for representation purposes only
