Description
Brand - IKO
Item Number - RNA 4906UU IKO
Also Known As - RNA4906UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 35
Boundary Dimension (Fw) mm - 35
Outer Diameter (D) mm - 47
Boundary Dimension (C) mm - 17
Minimum Boundary Dimension (rs) mm - 0.3
Maximum Standard Mounting Dimension (Da) mm - 45
Basic Dynamic Load Rating (C) N - 21500
Basic Static Load Rating (C0) N - 28400
Allowable Rotational Speed (min-1) - 5500
Weight (kg) - 0.071
Bearing With One Seal - RNA 4906U

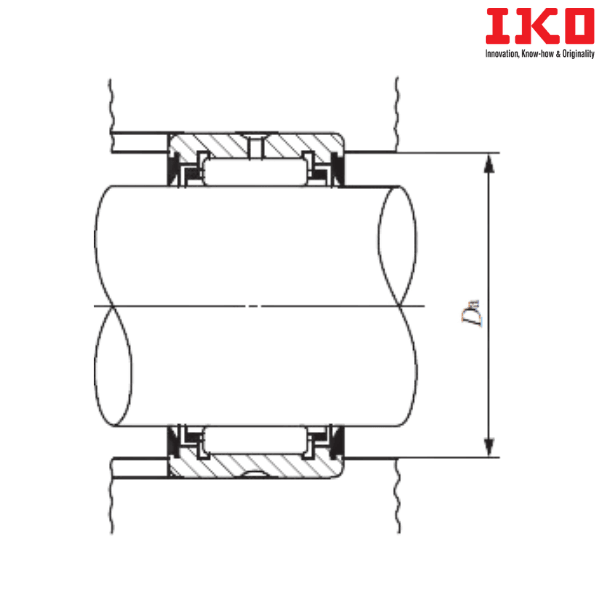

** Images are for representation purposes only
