Description
Brand - IKO
Item Number - RNA 49/82UU IKO
Also Known As - RNA49/82UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 95
Boundary Dimension (Fw) mm - 95
Outer Diameter (D) mm - 115
Boundary Dimension (C) mm - 30
Minimum Boundary Dimension (rs) mm - 1
Maximum Standard Mounting Dimension (Da) mm - 110
Basic Dynamic Load Rating (C) N - 83200
Basic Static Load Rating (C0) N - 168000
Allowable Rotational Speed (min-1) - 2000
Weight (kg) - 0.57
Bearing With One Seal - RNA 49/82U

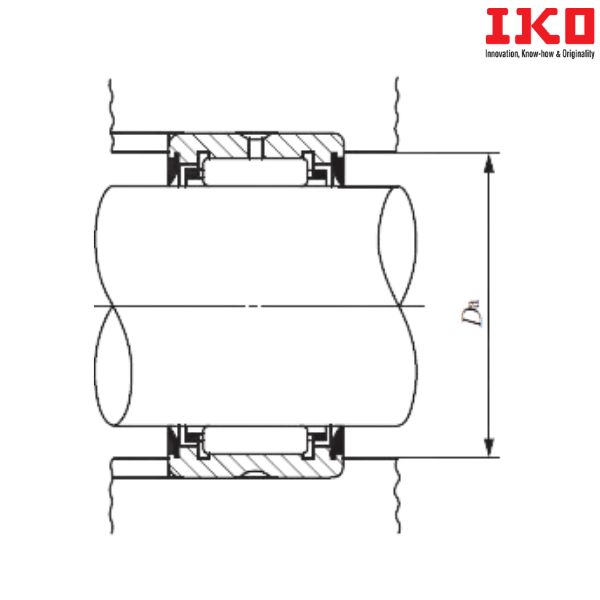

** Images are for representation purposes only
