Description
Brand - IKO
Item Number - RNA 49/48U IKO
Also Known As - RNA49/48U
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring
Seal - One Seal
Shaft Diameter (mm) - 55
Boundary Dimension (Fw) mm - 55
Outer Diameter (D) mm - 70
Boundary Dimension (C) mm - 22
Minimum Boundary Dimension (rs) mm - 0.6

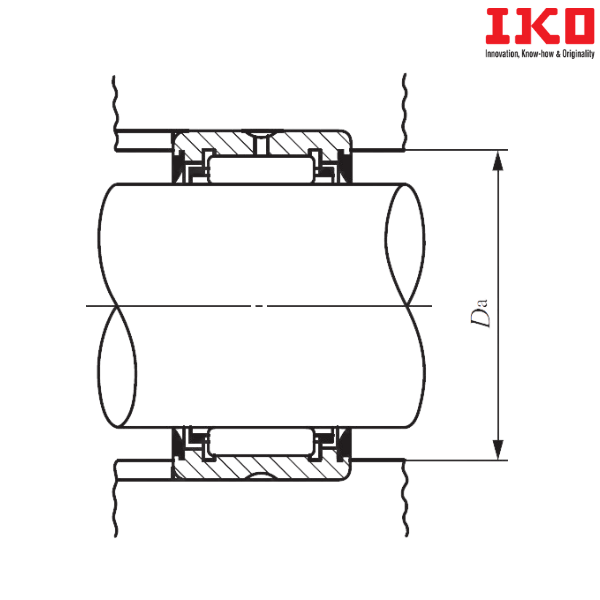

Maximum Standard Mounting Dimension (Da) mm - 66
Basic Dynamic Load Rating (C) N - 39600
Basic Static Load Rating (C0) N - 66100
Allowable Rotational Speed (min-1) - 3500
Weight (kg) - 0.187
Bearing With Two Seals - RNA 49/48UU
** Images are for representation purposes only
