Description
Brand - ZEN
Item Number - RLS9-2Z ZEN
Category - Deep Groove Ball bearing

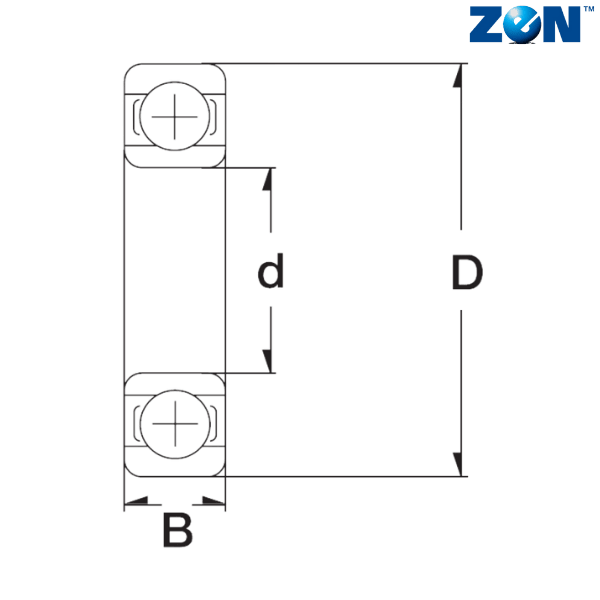

Inner Diameter (d) mm - 28.575
Inner Diameter (d) inch - 1.125
Outer Diameter (D) mm - 63.500
Outer Diameter (D) inch - 2.500
Width (B) mm - 15.875
Width (B) inch - 0.6250
Dynamic Load Rating (N) - 22000
Static Load Rating (N) - 11300
Limiting Speed (Grease) - 11.7
Weight (kg) - 0.219
Notes :
R - Inch
2Z - Metal Shields
** Images are for representation purposes only
