RKYLR 62 NADELLA

Brand - NADELLA
Item Number - RKYLR 62 NADELLA
Category - Floating Guide Roller with Tapered Roller Bearing

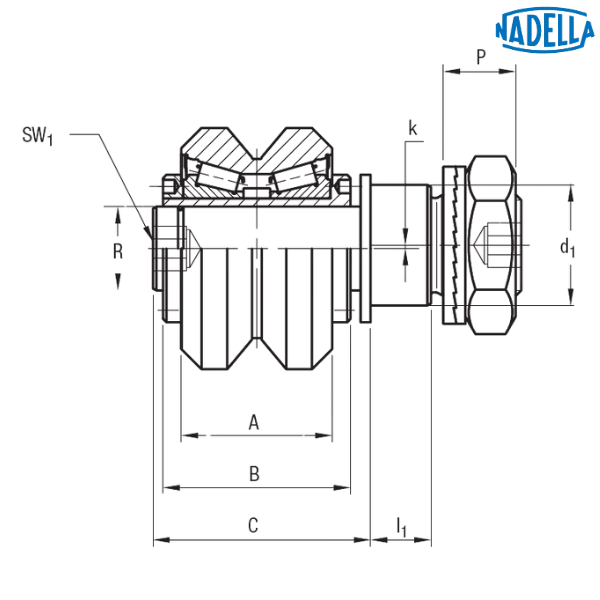

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 62 mm
Dimension (d1) - 27 (H7) mm
Dimension (d) - M24 x 1.5
Dimension (T) - 22.1 mm
Minimum Dimension (m*) - 25.5 mm
Maximum Dimension (m*) - 31.5 mm
Minimum Dimension (S) - 19 mm
Dimension (R) - 20 mm
Dimension (P) - 15.4 mm
Dimension (L) - 93 mm
Dimension (A) - 37 mm
Dimension (B) - 45 mm
Dimension (C) - 54 mm
Dimension (l1) - 18 mm
Dimension (M) - 35 mm
Dimension (SW1) - 10 mm
Dimension (SW2) - 36 mm
Dimension (k) - 7 mm
Dynamic Load (Cw**) - 46000 N
Radial Limit Load (Fr) - 6850 N
Torque Wrench Settings*** - 160 Nm
Weight - 0.95 kg

Other salient points to be noted:
* To ensure a safe and proper functioning the dimension m must not be higher than m maximum
** Cw = Basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads multiply figure by 0.8

• On request, the guide rollers can be supplied with viton seals for operating temperatures up to 120°C (suffix V), not available for RKXL 110
• Internal rolling elements in standard bearing steel
• Standard seals: material NBR, RS type
• Pressure angle α for load calculation: 40°

♦ ♦ Images are for representation purposes only
