RKYL 52 NADELLA

Brand - NADELLA
Item Number - RKYL 52 NADELLA
Category - Floating Guide Roller with Tapered Roller Bearing

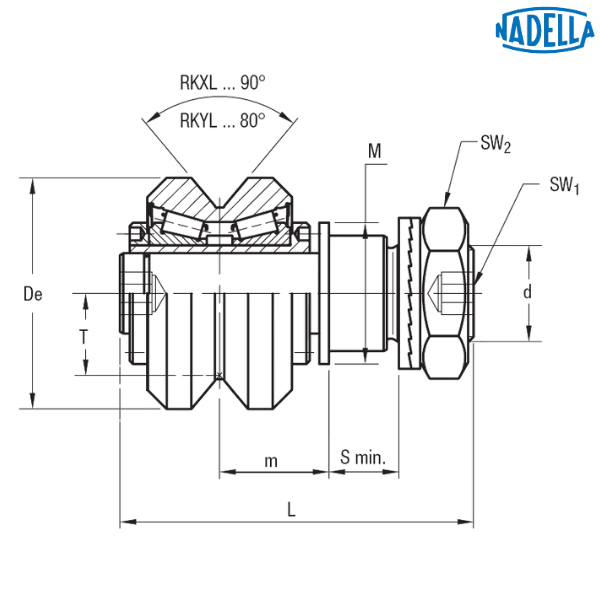

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 52 mm
Dimension (d1) - 21 (H7) mm
Dimension (d) - M20 x 1.5
Dimension (T) - 19.1 mm
Minimum Dimension (m*) - 24 mm
Maximum Dimension (m*) - 30 mm
Minimum Dimension (S) - 15 mm
Dimension (R) - 15 mm
Dimension (P) - 13.4 mm
Dimension (L) - 83 mm
Dimension (A) - 35 mm
Dimension (B) - 42 mm
Dimension (C) - 51 mm
Dimension (l1) - 14 mm
Dimension (M) - 30 mm
Dimension (SW1) - 8 mm
Dimension (SW2) - 30 mm
Dimension (k) - 1 mm
Dynamic Load (Cw**) - 41000 N
Radial Limit Load (Fr) - 3050 N
Torque Wrench Settings*** - 80 Nm
Weight - 0.63 kg

Description of Prefix:
RKYL - Floating guide rollers with tapered roller bearings for FS ... rails of V-Line system

Other salient points to be noted:
* To ensure a safe and proper functioning the dimension m must not be higher than m maximum
** Cw = Basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads multiply figure by 0.8

• On request, the guide rollers can be supplied with viton seals for operating temperatures up to 120°C (suffix V), not available for RKXL 110
• Internal rolling elements in standard bearing steel
• Standard seals: material NBR, RS type
• Pressure angle α for load calculation: 40°

♦ ♦ Images are for representation purposes only
