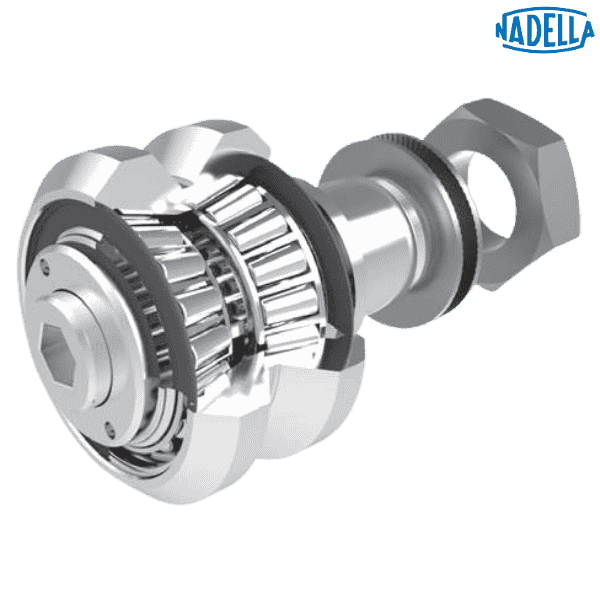

RKXLR 90 NADELLA

Brand - NADELLA
Item Number - RKXLR 90 NADELLA
Category - Floating Guide Roller with Tapered Roller Bearing

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 90 mm
Dimension (d1) - 38 (H7) mm
Dimension (d) - M36 x 1.5
Dimension (T) - 32.5 mm
Minimum Dimension (m*) - 36 mm
Maximum Dimension (m*) - 43 mm
Minimum Dimension (S) - 24 mm
Dimension (R) - 28 mm
Dimension (P) - 24.6 mm
Dimension (L) - 128 mm
Dimension (A) - 53 mm
Dimension (B) - 64 mm
Dimension (C) - 75 mm
Dimension (l1) - 23 mm
Dimension (M) - 49 mm
Dimension (SW1) - 14 mm
Dimension (SW2) - 55 mm
Dimension (k) - 9 mm
Dynamic Load (Cw**) - 130000 N
Radial Limit Load (Fr) - 13800 N
Torque Wrench Settings*** - 450 Nm
Weight - 2.9 kg

Other salient points to be noted:
* To ensure a safe and proper functioning the dimension m must not be higher than m maximum
** Cw = Basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads multiply figure by 0.8

• On request, the guide rollers can be supplied with viton seals for operating temperatures up to 120°C (suffix V), not available for RKXL 110
• Internal rolling elements in standard bearing steel
• Standard seals: material NBR, RS type
• Pressure angle α for load calculation: 40°
• For NX Suffix the dimension of A will be 56 mm

♦ ♦ Images are for representation purposes only
